1.25Gbps Single Mode 1550nm 100km 1×9 Transceiver
US$ 36.00 (Excl. VAT)
Good quality 1.25Gbps 1×9 Optical Transceiver (SMF, 1550nm, 100km, SC/FC/ST, 3.3V or 5V).
1.25G Single Mode 1×9 Optical Transceiver (SMF, 1550nm, 100km, SC/ST/FC, 3.3V/5V)
The OPT1250-55A0xxCR series are high-performance and cost-effective 1×9 optical transceivers for high-speed serial optical communication that require data rates of 1.25Gbps. They are suitable for Gigabit Ethernet and 1x Fibre channel long-reach applications. This series of 1×9 optical transceivers provide a 100km transmission distance over single mode fiber at a nominal wavelength of 1550nm.
Each 1×9 transceiver module consists of a transmitter section and a receiver section. The transmitter incorporates a highly reliable 1550 nm DFB Laser and a driver circuit that converts Pseudo Emitter Coupled Logic(PECL) data to the light signal. The receiver incorporates a high-speed PIN photodiode converting the light signal into an electrical current which is amplified and regenerated into PECL compatible data.
The OPT1250-55A0xxCR series 1×9 transceiver provides with choice of duplex SC, FC, or ST receptacle for different clients.
Features
• Industry Standard 1×9 footprint package
• Up to 1.25Gbps data links
• Duplex SC, ST, or FC connector
• Single +3.3V or +5V Power Supply
• Operating wavelength 1550nm
• Up to 100km over single mode fiber
• Standard PECL or LVPECL data output with signal detect an indication
• Class 1 laser safety standard IEC 60825 compliant
• Operating case temperature: 0 to +70°C
• ROHS compliant and Lead-Free
Specification
| Part Number | OPT1250-55A0xxCR | Form Factor | 1×9 |
| Data Rate | 1.25 Gb/s | Wavelength | 1550 nm |
| Max Distance | 100 km | Fiber Type | SMF |
| Voltage | 3.3V or 5V | Optical Components | DFB/PIN |
| Transmitter Power | 1 ~ 5 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -29 dBm | Connector | Duplex SC,ST or FC |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 1G Fiber Channel, Gigabit Ethernet Switch to Switch Interface, Switched Backplane Applications Broadband aggregation and wireless infrastructure Gigabit Ethernet Media Converters |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |

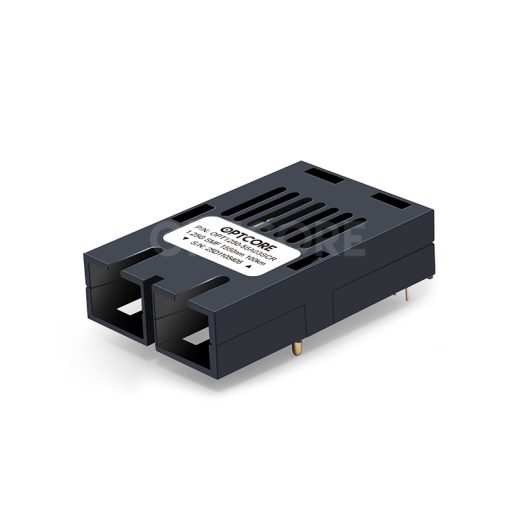

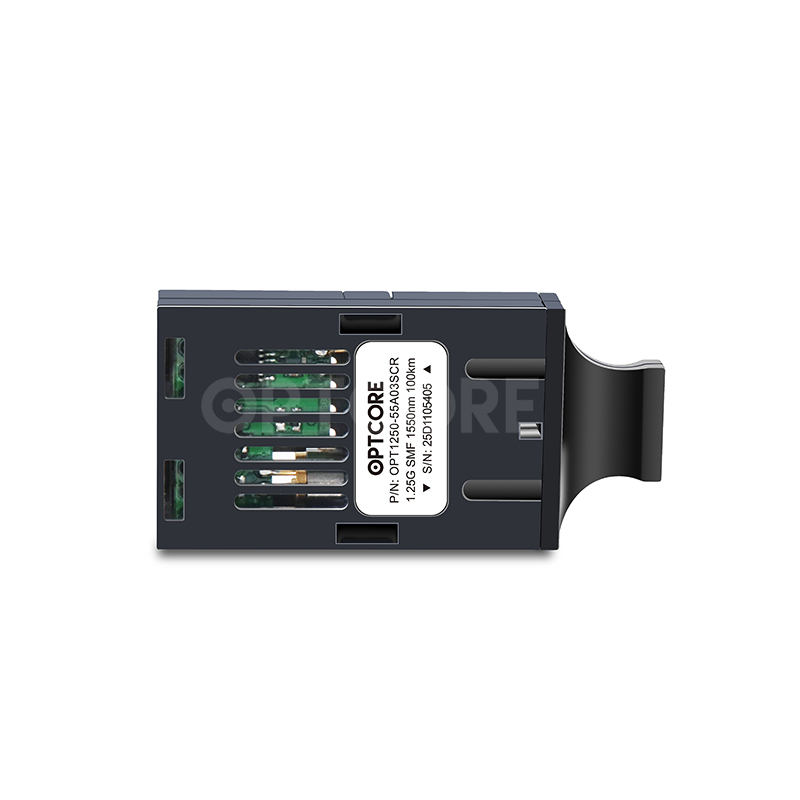

| OPT1250-55A03SCR | 1.25Gbps 1×9 Optical Transceiver, Single mode, 1550nm, 100km, 3.3V, SC Connector, 0ºC ~ +70ºC |

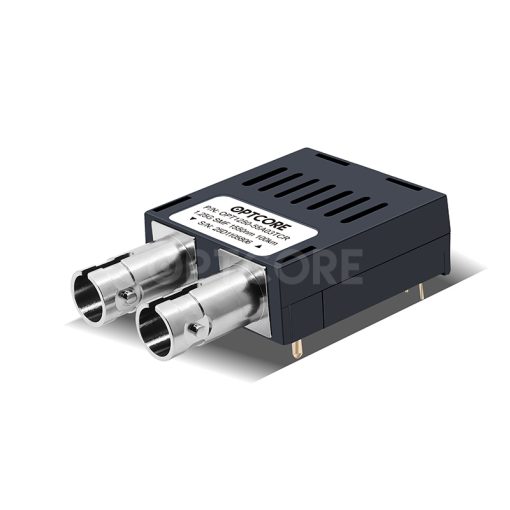

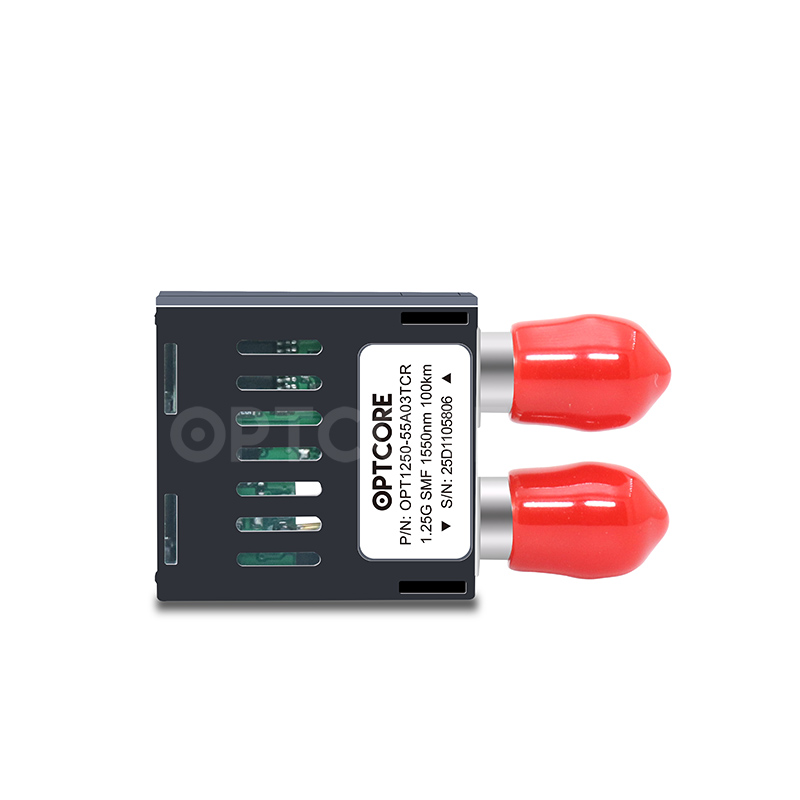

| OPT1250-55A03TCR | 1.25Gbps 1×9 Optical Transceiver, Single mode, 1550nm, 100km, 3.3V, ST Connector, 0ºC ~ +70ºC |

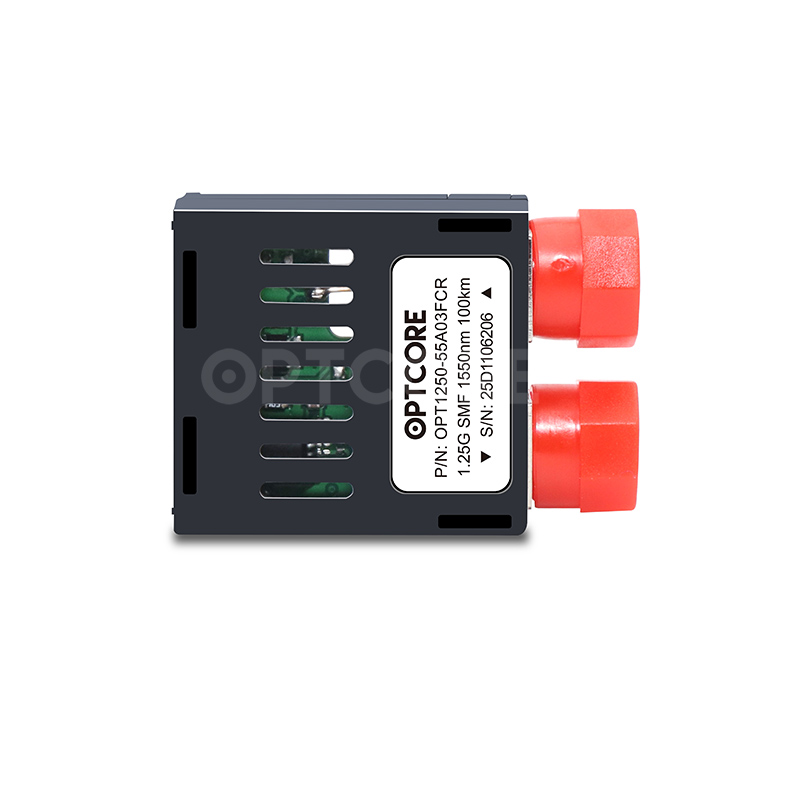

| OPT1250-55A03FCR | 1.25Gbps 1×9 Optical Transceiver, Single mode, 1550nm, 100km, 3.3V, FC Connector, 0ºC ~ +70ºC |
| OPT1250-55A05SCR | 1.25Gbps 1×9 Optical Transceiver, Single mode, 1550nm, 100km, 5V, SC Connector, 0ºC ~ +70ºC |
| OPT1250-55A05TCR | 1.25Gbps 1×9 Optical Transceiver, Single mode, 1550nm, 100km, 5V, ST Connector, 0ºC ~ +70ºC |
| OPT1250-55A05FCR | 1.25Gbps 1×9 Optical Transceiver, Single mode, 1550nm, 100km, 5V, FC Connector, 0ºC ~ +70ºC |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
