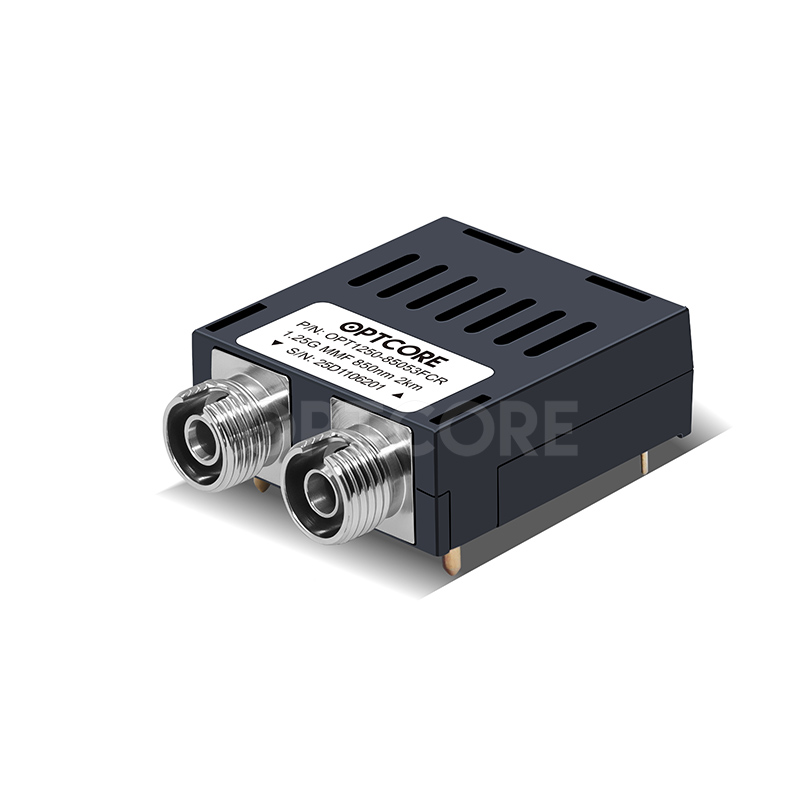

1.25Gbps Multi-mode 850nm 0.55km 1×9 Industrial Transceiver

1.25G Multi-mode 1×9 Industrial Transceiver (MMF, 850nm, 550m, SC/ST/FC, 3.3V/5V, -40~85°C)

The OPT1250-8505xxTR series are high-performance and the cost-effective 1×9 multi-mode industrial optical transceiver for high-speed industrial communications in harsh environments that require data rates of 1.25Gb/s. They are suitable for Gigabit Ethernet and 1x Fibre channel short-reach applications. This series of 1×9 industrial optical transceivers provide a 0.55km transmission distance over multi-mode fiber at a nominal wavelength of 850nm.

Each 1×9 industrial transceiver module consists of a transmitter section and a receiver section. The transmitter incorporates a highly reliable 850 nm VCSEL Laser and a driver circuit that converts Pseudo Emitter Coupled Logic(PECL) data to the light signal. The receiver incorporates a high-speed PIN photodiode converting the light signal into an electrical current which is amplified and regenerated into PECL compatible data.

The OPT1250-8505xxTR series provides with choice of duplex SC, FC, or ST receptacles for different clients.

Features

• Industry Standard 1×9 footprint package
• Up to 1.25Gbps data links

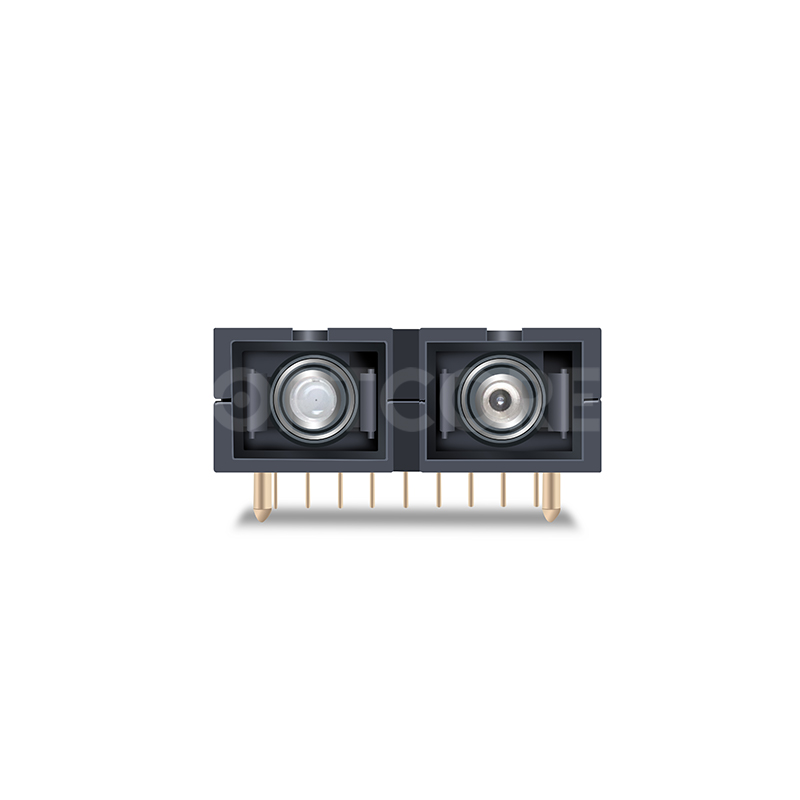

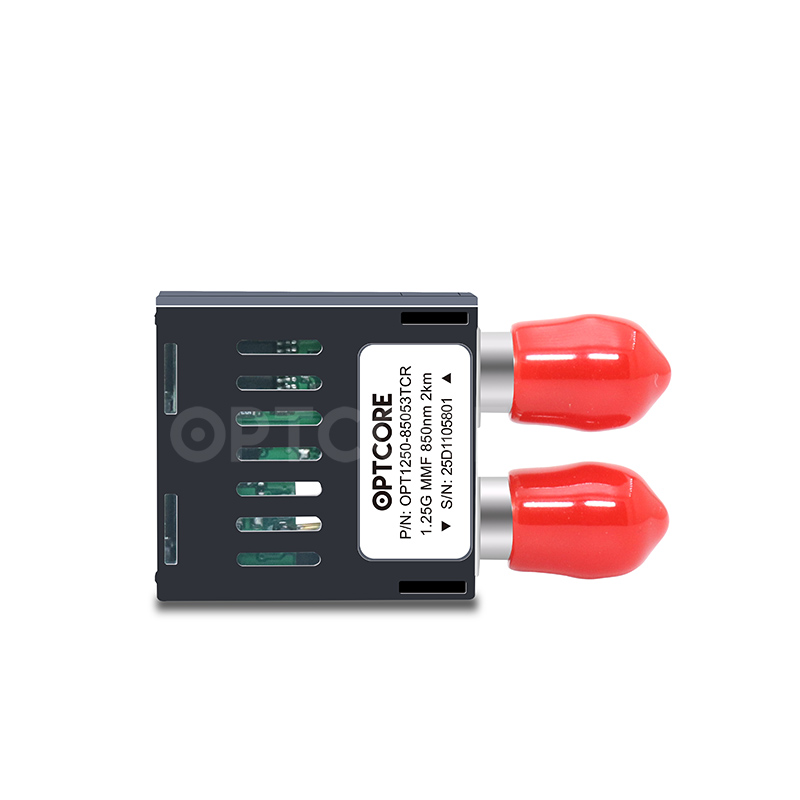

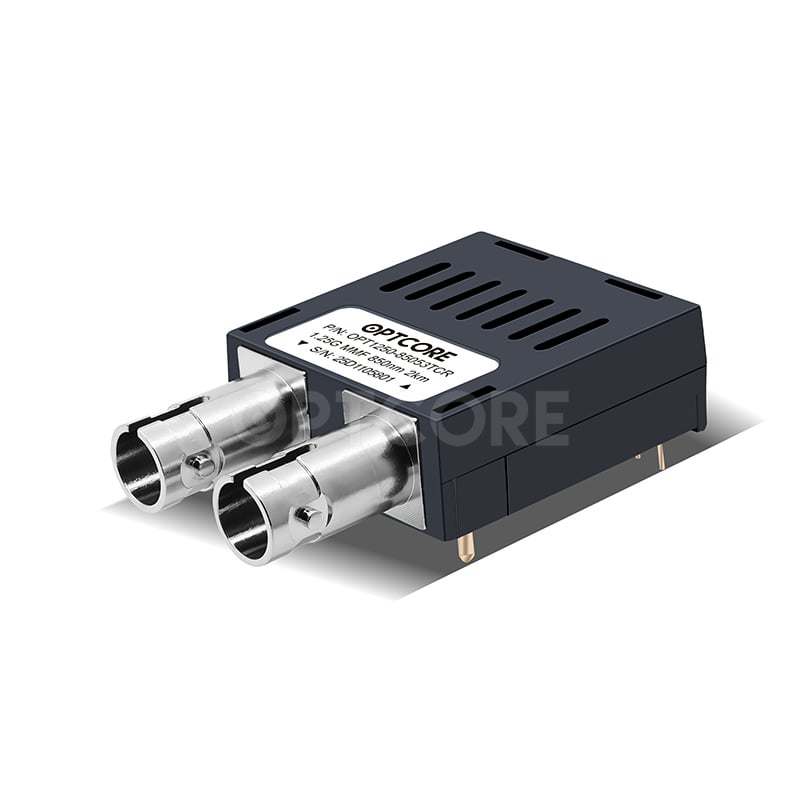

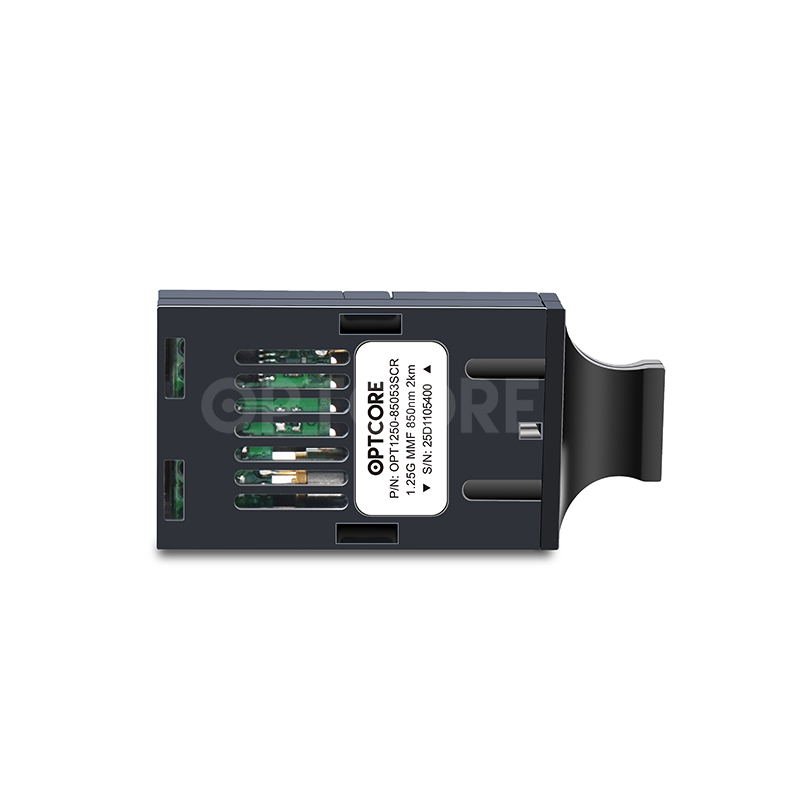

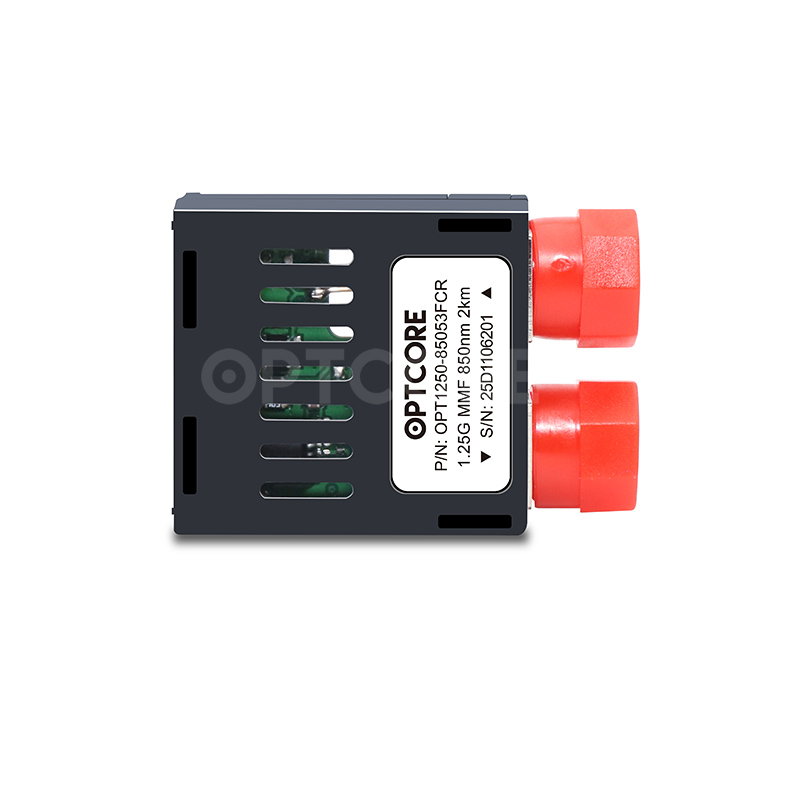

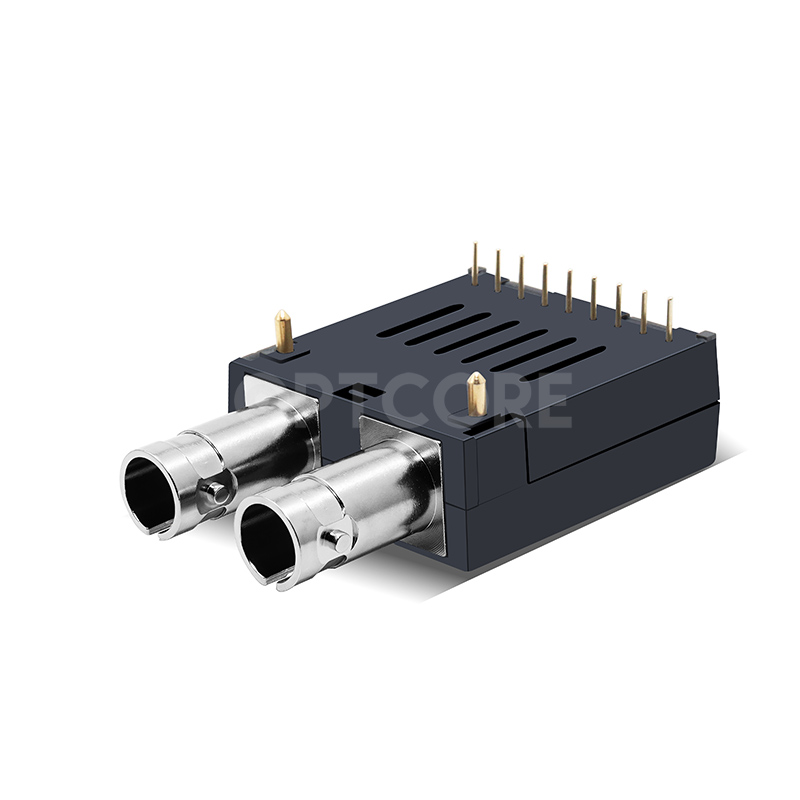

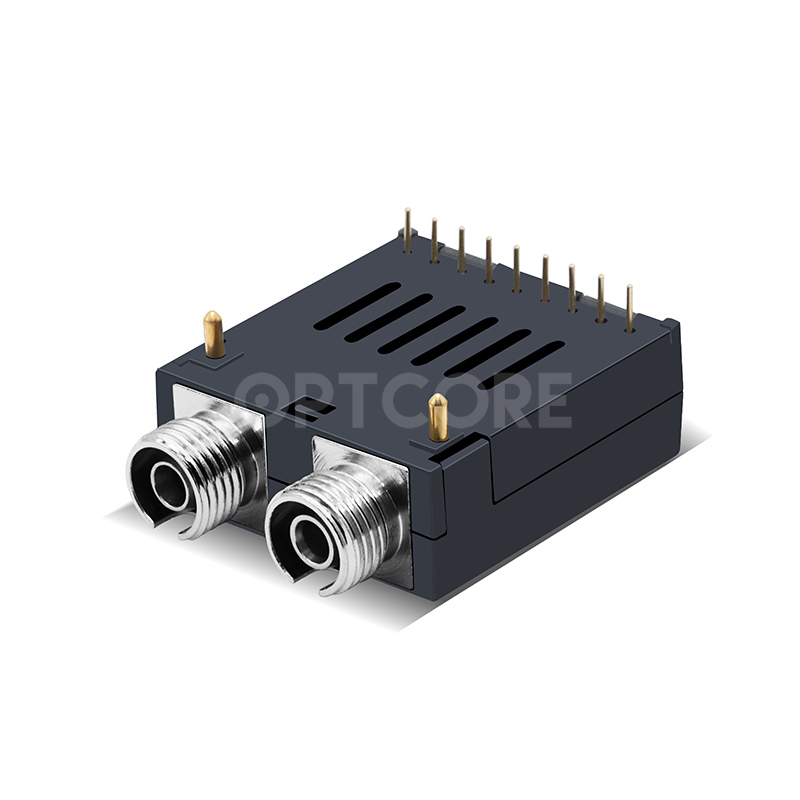

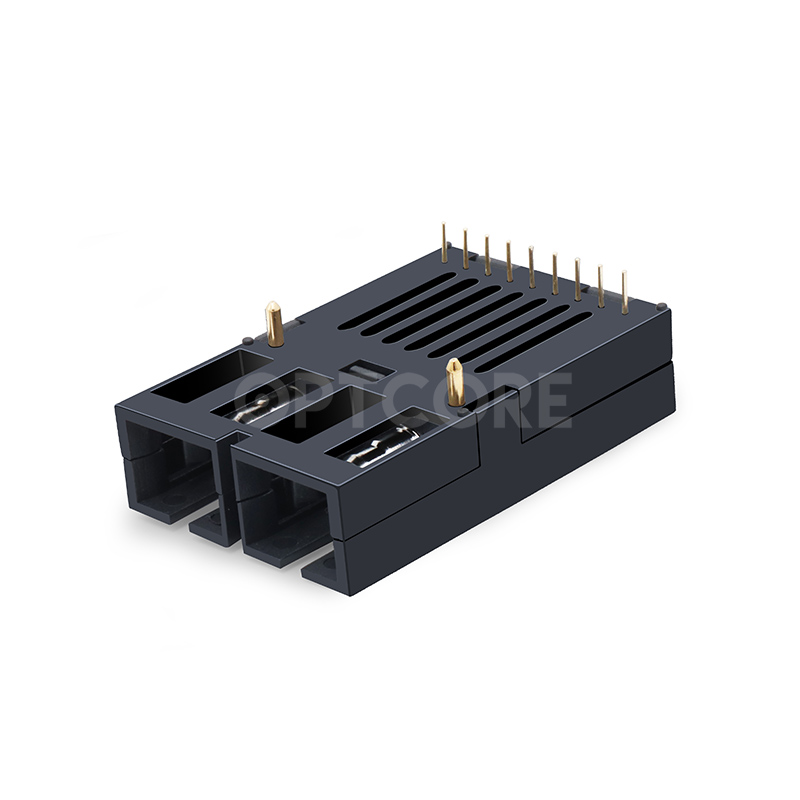

• Duplex SC, ST, or FC connector
• Single +3.3V or +5V Power Supply
• Operating wavelength 850nm
• Up to 0.5 km over multimode fiber
• Standard PECL or LVPECL data output with signal detect an indication
• Class 1 laser safety standard IEC 60825 compliant
• Operating case temperature: -40 to +85°C
• ROHS compliant and Lead-Free

Specification

Ordering Information

Download

 Datasheet:  OPT1250-85053xTR(3.3V)  /  OPT1250-85055xTR(5V)

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
