0.5Mb/500kbps 1310nm 20km 1×9 TTL Transceiver

0.5Mb/500kb 1×9 TTL Transceiver Module (SMF, 1310nm, 20km, SC/FC/ST connector, 3.3V/5V)

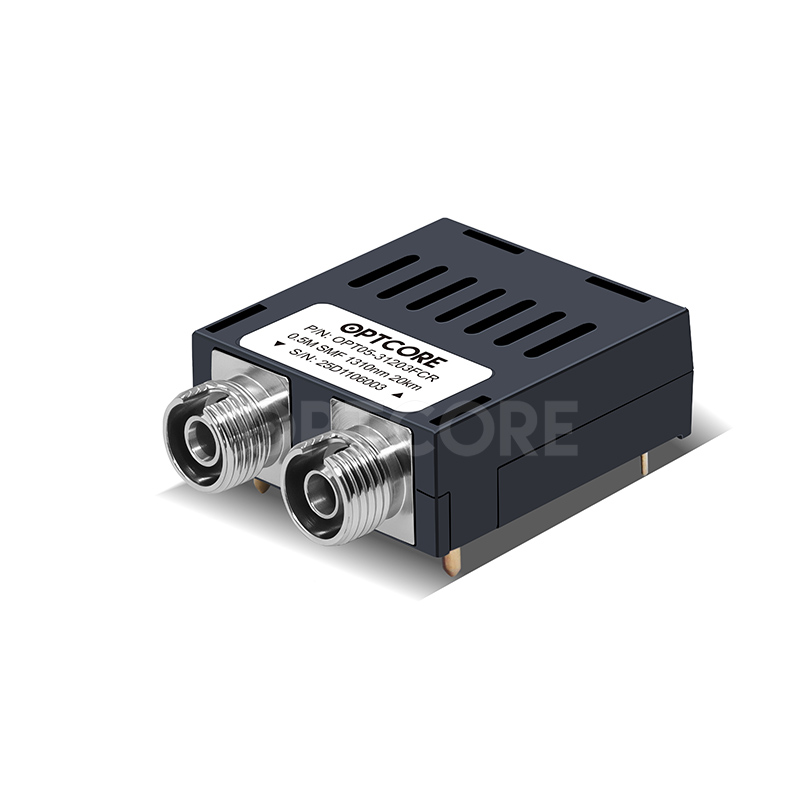

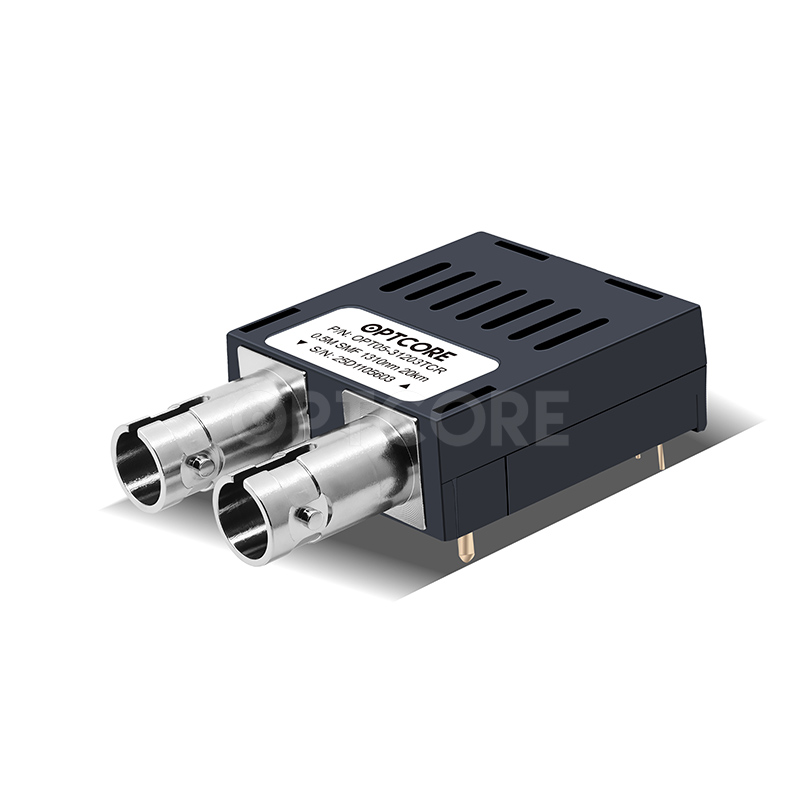

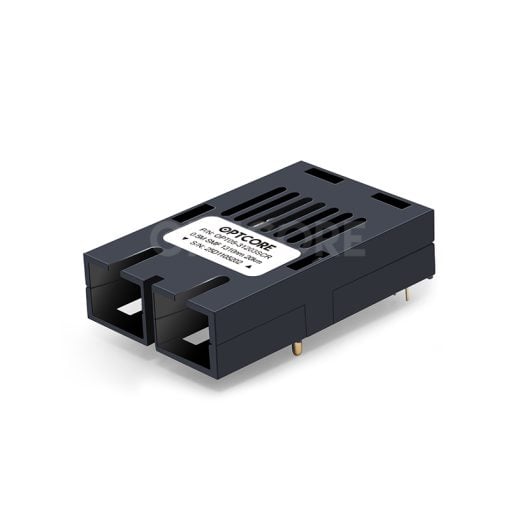

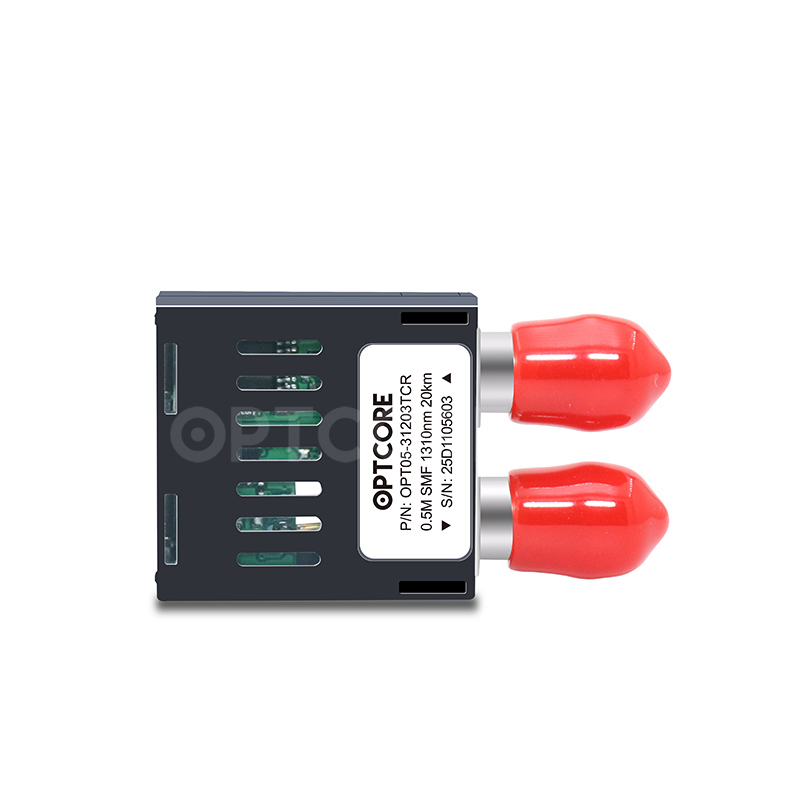

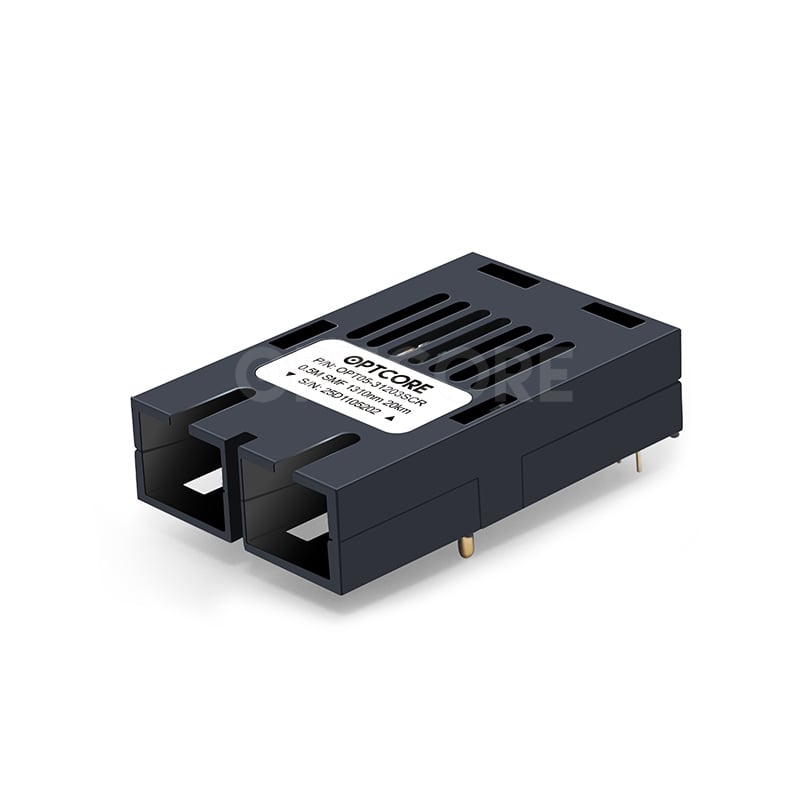

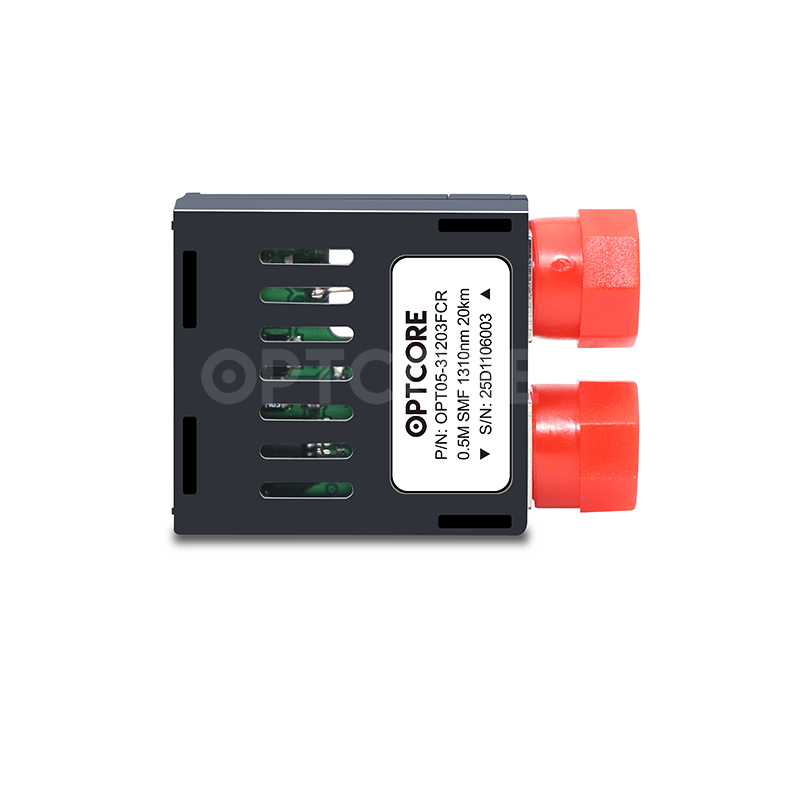

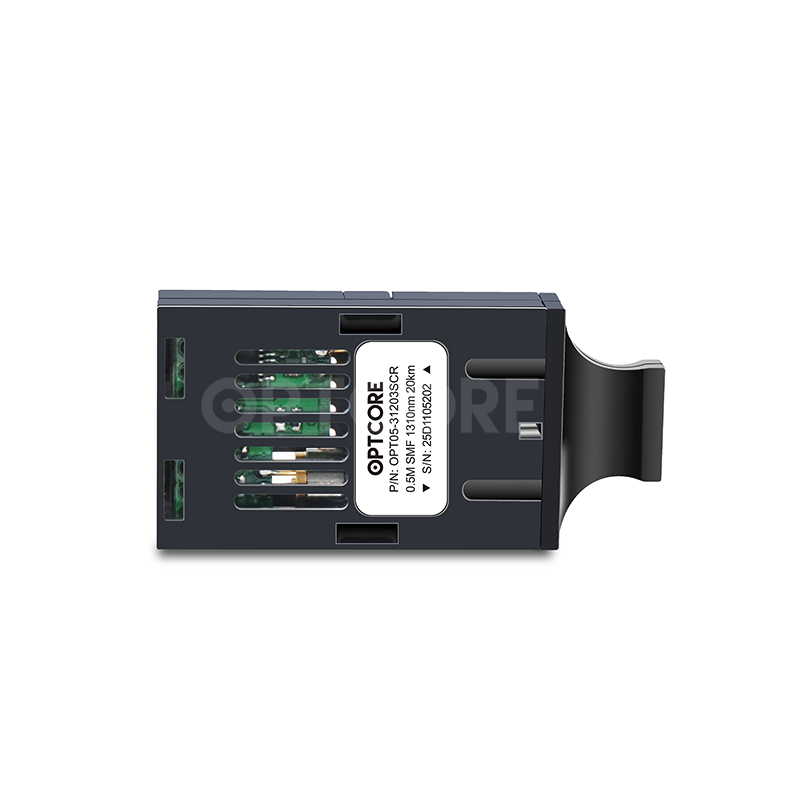

The OPT05-3120xxCR family of 1×9 optical transceivers from Optcore provides the system designer and manufacturers with products to implement a range of industrial control, special low data rate Ethernet designs at the 0Mb/s-0.5Mb/s rate. This series of fiber optic transceivers are supplied in the industry-standard 1×9 SIP package style with a duplex SC, a duplex ST, a duplex FC, or Pigtails type connector interface. The transceivers are high-performance, cost-effective modules with a TTL data interface that supports a data rate of 0~500kbps (0~0.5Mb) and a maximum 20km transmission distance over single mode fiber cable (SMF). The OPT05-3120xxCR series TTL 1×9 optical transceivers help convert copper signals to optical fiber. They are usually used for serial communications over fiber like RS-232/422/485 serial to fiber media converters and industrial Ethernet networks to fiber networks communications like industrial fiber optic converters and Ethernet switches.

The OPT05-3120xxxR family 1×9 transceiver optics provide commercial and industrial temperature grades for hardened environment applications. For detailed information, please refer to the ordering information.

The OPT05-3120xxCR family 1×9 TTL transceiver optics are commercial temperature-grade products. Industrial temperature grade 1×9 transceivers for industrial Ethernet applications in the hardened environment are also available, click here to learn more about OPT05-3120xxTR (0.5Mbps SMF 1310nm 2km 1×9 Industrial Optical Transceiver).

Features

• SC/ST/FC receptacle single mode or multi-mode optical interface
• Single +3.3V or +5V Power Supply
• Standard TTL data output with signal detect indication, compatible with CMOS level
• 1×9 footprint package
• Operating wavelength 850nm or 1310nm
• Super low power consumption design, applied to some special require
• Optional transmission bit rate with down to 0bps and up to 0.5Mbps
• Operating case temperature: 0 to +70°C
• ROHS-compliant and Lead-Free

Specification

Ordering Information

Download

 Datasheet:  OPT05-3120xxxR

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
