0.5Mb/500kbps 850nm 1km 1×9 Industrial Transceiver
Price range: US$ 17.50 through US$ 17.90 (Excl. VAT)
Good quality 0~500kbps Ultra-Low Data Rate TTL 1×9 Industrial Optical Transceiver (MMF, 850nm, 1km, SC/FC/ST, 3.3V or 5V).

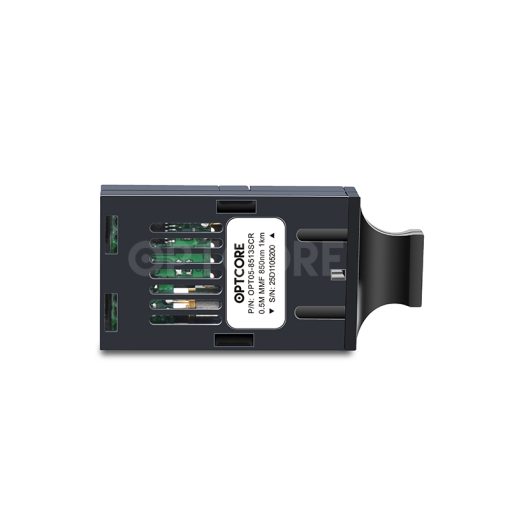

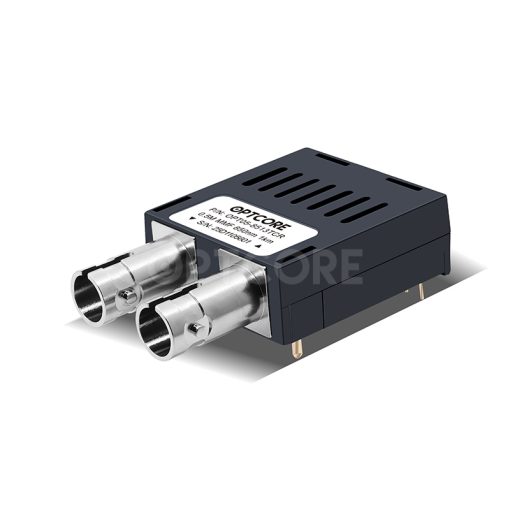

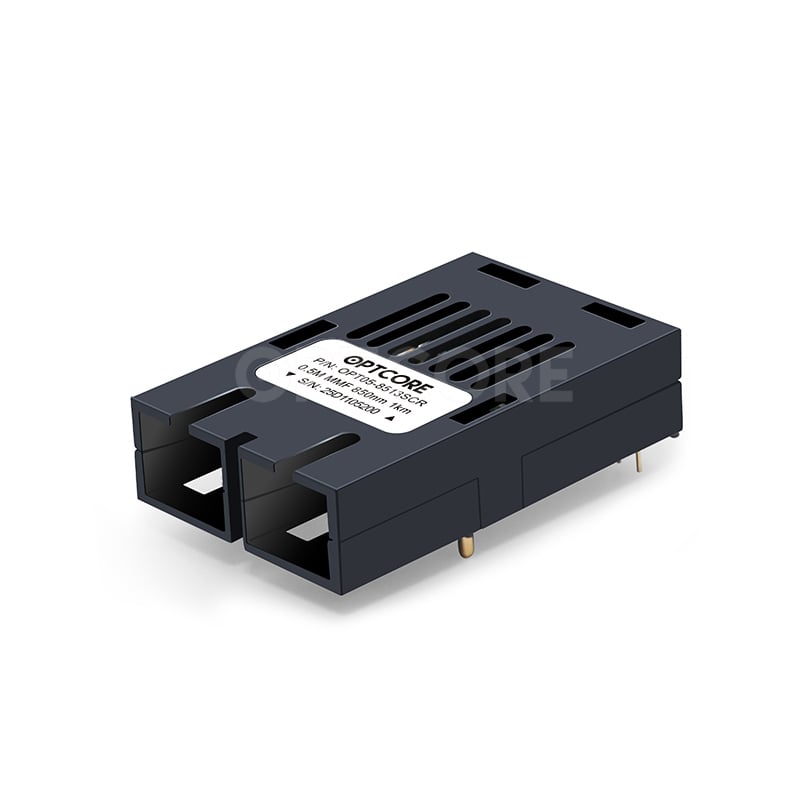

0.5Mb/500kbps TTL 1×9 Industrial Transceiver Module (MMF, 850nm, 1km, SC/FC/ST, -40°C~85°C)
The OPT05-851xxTR family of 1×9 optical transceivers from Optcore provides the system designer and manufacturers with products to implement a range of industrial control and special low data rate Ethernet designs 0Mb/s-0.5Mb/s rate. This series of fiber optic transceivers are supplied in the industry-standard 1×9 SIP package style with a duplex SC, a duplex ST, a duplex FC or Pigtails type connector interface. The transceivers are high-performance, cost-effective modules with a TTL data interface that supports a data rate of 0~500kbps (0~0.5Mb) and a 1km transmission distance over a multi-mode fiber cable (MMF). The OPT05-851xxTR series TTL 1×9 optical Transceivers help you convert copper signals to optical fiber. They are usually used for serial communications over fiber like RS-232/422/485 serial to fiber media converter and industrial Ethernet networks to fiber networks communications like industrial fiber optic converters and industrial Ethernet switches.
The OPT05-851xxTR family 1X9 TTL transceivers are industrial temperature grade products for hardened environment application. Commercial temperature grade products are also available. Click here to learn more about OPT05-851xxCR (0.5Mbps MMF 850nm 1km 1×9 Transceiver).
Features

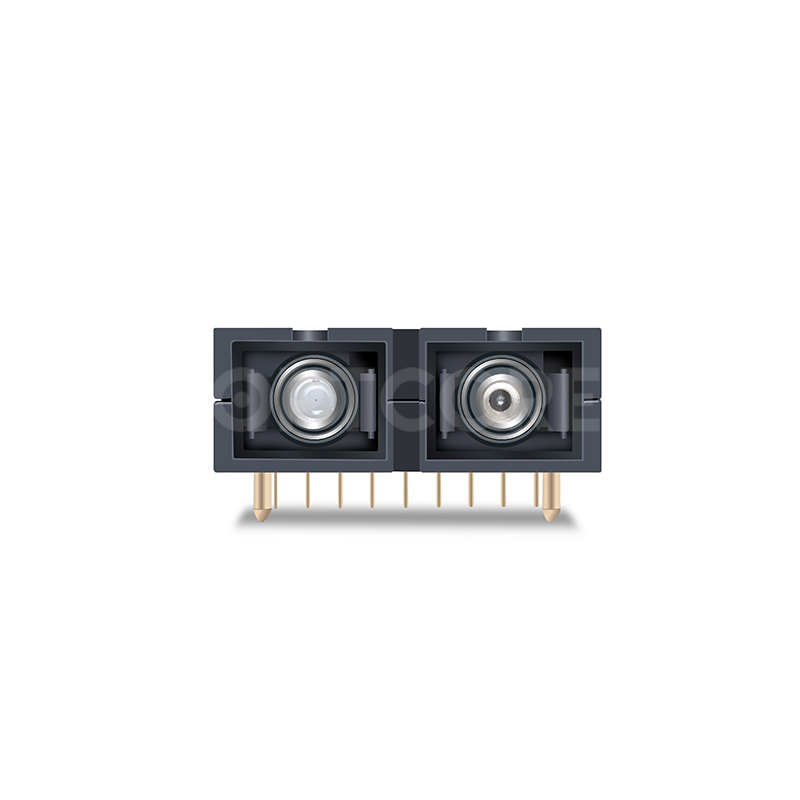

• SC/ST/FC receptacle multi-mode optical interface
• Single +3.3V or +5V Power Supply
• 1×9 SIP package
• Operating wavelength 850nm
• Super low power consumption design, applied to some special require
• Optional transmission bit rate with down to 0bps and up to 500kbps
• Standard TTL data output with signal detect indication, compatible with CMOS level
• Compliant with RS485 function
• Operating case temperature: Industrial: -40 to +85°C
• ROHS compliant and Lead-Free
Specification
| Part Number | OPT05-851xxTR | Form Factor | Industrial 1×9 |
| Data Rate | 0~500 kb/s (0~0.5 Mb/s) | Wavelength | 850 nm |
| Max Distance | 1 km | Fiber Type | Multi Mode (MMF) |
| Voltage | 3.3v or 5v | Optical Components | VCSEL/PIN |
| Transmitter Power | -12 ~ -6 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -16 dBm | Connector | Duplex SC,ST or FC |
| Environment | Operating: Industrial grade -40°C to 85°C Storage: -40°C to 85°C |
Weight | 0.02 kg |
| Application | • Industrial Ethernet Applications such as Industrial Ethernet Switches,industrial Ethernet Media Converters,Industrial Fiber Converters • Serial Communications over fiber: Industrial RS-232/RS-422/RS-485 serial to fiber media converter,industrial RS-232 to RS-422 and RS-485 Adapters • RS232/RS485/RS422 optical-electrical converter for electric power control, industrial control,industrial computing |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |
| OPT05-8515STR | TTL 1×9 Industrial Transceiver,Multi-mode Fiber,850nm,0~500Kbps,1km,5V,-40ºC~+85ºC,SC |
| OPT05-8515TTR | TTL 1×9 Industrial Transceiver,Multi-mode Fiber,850nm,0~500Kbps,1km,5V,-40ºC~+85ºC,ST |
| OPT05-8515FTR | TTL 1×9 Industrial Transceiver,Multi-mode Fiber,850nm,0~500Kbps,1km,5V,-40ºC~+85ºC,FC |
| OPT05-8515PTR | TTL 1×9 Industrial Transceiver,Multi-mode Fiber,850nm,0~500Kbps,1km,5V,-40ºC~+85ºC,FC Pigtail |
| OPT05-8513STR | TTL 1×9 Industrial Transceiver,Multi-mode Fiber,850nm,0~500Kbps,1km,3.3V,-40ºC~+85ºC,SC |
| OPT05-8513TTR | TTL 1×9 Industrial Transceiver,Multi-mode Fiber,850nm,0~500Kbps,1km,3.3V,-40ºC~+85ºC,ST |
| OPT05-8513FTR | TTL 1×9 Industrial Transceiver,Multi-mode Fiber,850nm,0~500Kbps,1km,3.3V,-40ºC~+85ºC,FC |
| OPT05-8513PTR | TTL 1×9 Industrial Transceiver,Multi-mode Fiber,850nm,0~500Kbps,1km,3.3V,-40ºC~+85ºC,FC Pigtail |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
