0.5Mb/500kbps Multimode 1310nm 2km 1×9 TTL Transceiver
Price range: US$ 15.90 through US$ 16.30 (Excl. VAT)
Good quality 0~500kbps Ultra-Low Data Rate TTL 1×9 Optical Transceiver (MMF, 1310nm, 2km, SC/FC/ST,3.3V/ 5V).
0.5Mb/500kbps Multimode 1×9 TTL Transceiver Module (MMF, 1310nm, 2km, SC/FC/ST, 3.3V/5V, 0°C~70°C)
The OPT05-312xxCR family of 1×9 optical transceivers from Optcore provides the system designer and manufacturers with products to implement a range of industrial control, special low data rate Ethernet designs at the 0Mb/s-0.5Mb/s rate. This series of fiber optic transceivers are supplied in the industry-standard 1×9 SIP package style with a duplex SC, a duplex ST, a duplex FC, or Pigtails type connector interface. The transceivers are high-performance, cost-effective modules with a TTL data interface that supports a data rate of 0~500kbps (0~0.5Mb) and a maximum 2km transmission distance over a multi-mode fiber cable (MMF). The OPT05-312xxCR series TTL 1×9 optical Transceivers help convert copper signals to optical fiber. They are usually used for serial communications over fiber like RS-232/422/485 serial to fiber media converters and industrial Ethernet networks to fiber networks communications like industrial fiber optic converters and Ethernet switches.
The OPT05-312xxCR family 1×9 transceiver optics are commercial temperature-grade products. Industrial temperature grade 1×9 transceivers for industrial Ethernet applications in the hardened environment are also available. Click here to learn more about OPT05-312xxTR (0.5Mbps MMF 1310nm 2km 1×9 Industrial Transceiver).
Features
• SC/ST/FC receptacle optical interface
• Single +3.3V or +5V Power Supply
• 1X9 SIP package
• Operating wavelength 1310nm over multi-mode fiber
• Super low power consumption design, applied to some special require
• Optional transmission bit rate with down to 0bps and up to 500kbps
• Standard TTL data output with signal detect indication, compatible with CMOS level
• Compliant with RS485 function
• Operating case temperature: 0 to +70°C
• ROHS-compliant and Lead-Free
Specification
| Part Number | OPT05-312xxCR | Form Factor | 1×9 |
| Data Rate | 0~500 kb/s (0~0.5 Mb/s) | Wavelength | 1310 nm |
| Max Distance | 2 km | Fiber Type | Multimode (MMF) |
| Voltage | 3.3V or 5V | Optical Components | FP/PIN |
| Transmitter Power | -10 ~ -5 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -18 dBm | Connector | Duplex SC, ST, or FC |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.02 kg |
| Application | • Industrial Ethernet Applications such as Industrial Ethernet Switches, industrial Ethernet Media Converters, Industrial Fiber Converters • Serial Communications over fiber: Industrial RS-232/RS-422/RS-485 serial to fiber media converter, industrial RS-232 to RS-422 and RS-485 Adapters • RS232/RS485/RS422 optical-electrical converter for electric power control, industrial control,industrial computing |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |

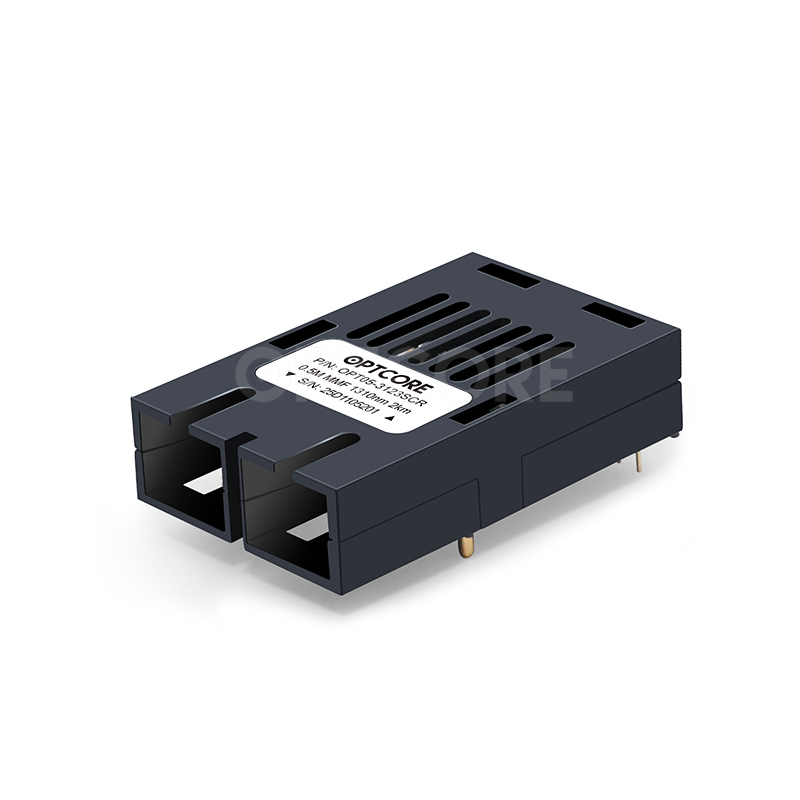

| OPT05-3125SCR | TTL 1×9 Transceiver, Multi Mode, 1310nm, 0~500Kbps, 2km, 5V, 0ºC~70ºC, SC |

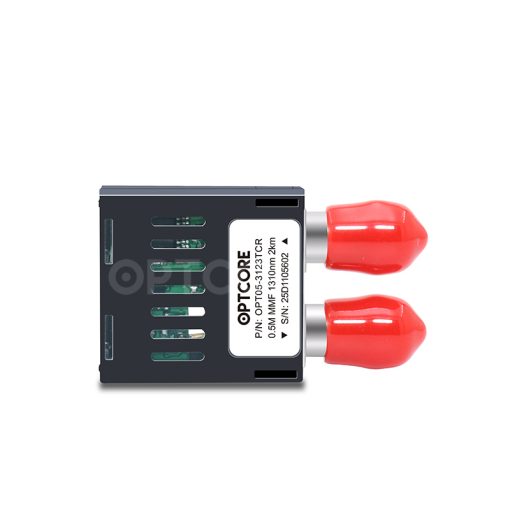

| OPT05-3125TCR | TTL 1×9 Transceiver, Multi Mode, 1310nm, 0~500Kbps, 2km, 5V, 0ºC~70ºC, ST |

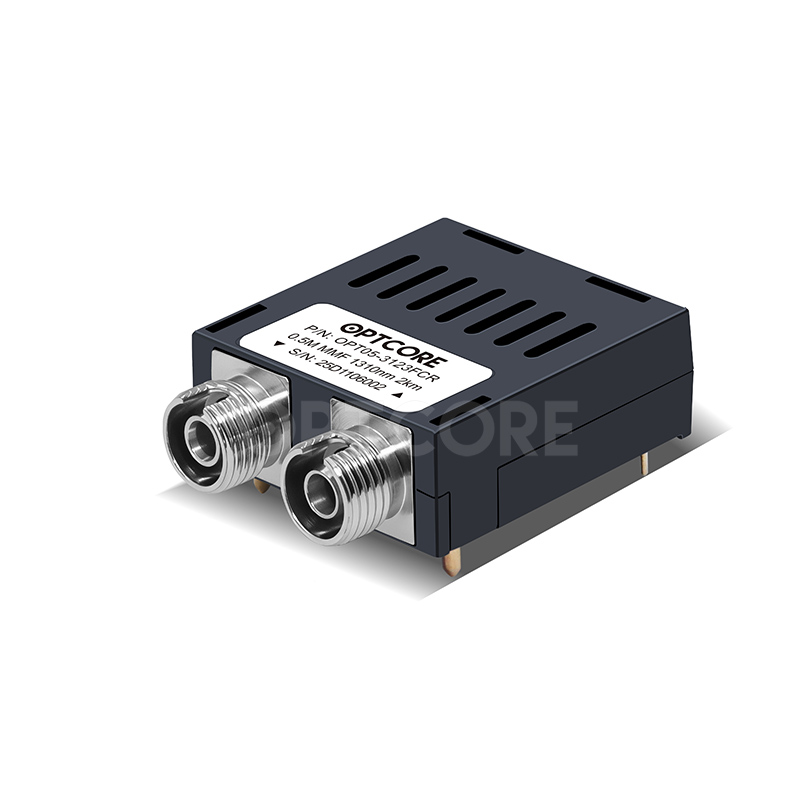

| OPT05-3125FCR | TTL 1×9 Transceiver, Multi Mode, 1310nm, 0~500Kbps, 2km, 5V, 0ºC~70ºC, FC |
| OPT05-3125PCR | TTL 1×9 Transceiver, Multi Mode, 1310nm, 0~500Kbps, 2km, 5V, 0ºC~70ºC, FC Pigtail |
| OPT05-3123SCR | TTL 1×9 Transceiver, Multi Mode, 1310nm, 0~500Kbps, 2km, 3.3V, 0ºC~70ºC, SC |
| OPT05-3123TCR | TTL 1×9 Transceiver, Multi Mode, 1310nm, 0~500Kbps, 2km, 3.3V, 0ºC~70ºC, ST |
| OPT05-3123FCR | TTL 1×9 Transceiver, Multi Mode, 1310nm, 0~500Kbps, 2km, 3.3V, 0ºC~70ºC, FC |
| OPT05-3123PCR | TTL 1×9 Transceiver, Multi Mode, 1310nm, 0~500Kbps, 2km, 3.3V, 0ºC~70ºC, FC Pigtail |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
