DAC vs AOC vs Fiber: Understanding the Key Differences in Data Center Connectivity

When engineers design these connections, a very common discussion comes up: DAC vs AOC, and sometimes DAC vs Fiber or AOC vs Fiber, depending on the distance and application. In modern data centers and high-speed networks, servers, switches, and storage systems all need to be connected through high-bandwidth links. For connections over a short distance or mid-range, three main solutions are available for the engineer:

• DAC (Direct Attach Copper)
• AOC (Active Optical Cable)
• Fiber Cable (Optical Transceivers + Fiber Patch Cables)

From the outside, these solutions may look quite similar, as they often share the same interface standards: SFP+, SFP28, QSFP+, QSFP28. However, the underlying technology and the principle of operation are quite different. This article will discuss how these technologies work and compare their differences.

What Is AOC

AOC (Active Optical Cable) is a cable that integrates optical transceivers directly into the cable assembly. Unlike traditional fiber links, the optical components are already built into the connectors on both ends. Inside an AOC cable, you’ll typically find:

• Laser transmitters
• Photodetectors
• Driver and control circuits

Because these components are already integrated, the cable works as a plug-and-play optical link. The path of an electrical signal in an AOC connection is as follows:

Electrical signal → Optics conversion → Fiber transmission → Optics conversion → Electrical signal

AOC cables use multimode fiber (MMF), such as OM3 or OM4. This is a reasonable choice in a data center, as the distance is typically under about 100 meters. Multimode fibers provide a fair trade-off between cost and bandwidth.

Another advantage is that optical signals are immune to electromagnetic interference (EMI). In dense racks full of high-power equipment, this helps maintain stable signal integrity. When people compare DAC vs AOC, this optical transmission capability is usually the biggest reason why AOC can support longer distances.

What Is DAC

DAC (Direct Attach Copper) is a high-speed cable that uses Twinax wires. It is commonly used to connect servers and switches over short distances. A DAC cable typically has connectors at both ends, such as SFP+ and QSFP. It has small circuits inside the connectors that help equalize high-speed electrical signals transmitted over the copper cable. The signal path is very straightforward:

Electrical signal → Copper cable → Electrical signal

Because of the absence of optical conversion, the DAC offers several advantages in terms of latency and power consumption. For example, the passive DAC cable consumes less than 0.1W, which is much lower than most optical cables. However, copper transmission also has its limitations. At higher frequencies, electrical signals suffer from:

• attenuation
• crosstalk
• electromagnetic interference

These effects restrict the maximum distance and make cable management a bit more challenging. These limitations are why engineers compare options before deployment.

What Is a Fiber Cable

A standard fiber connection has two optical transceivers and a fiber patch cable. This is unlike the DAC or AOC, in which the optical transceiver and cable are separate. The flow of the signal in a fiber connection is as follows:

Signal → Optical Module → Fiber Transmission → Optical Module → Signal

This is the flexibility that makes the fiber connection different in the context of the AOC vs. fiber debate. While the AOC is a cable assembly, the fiber connection has the flexibility to change transceivers.

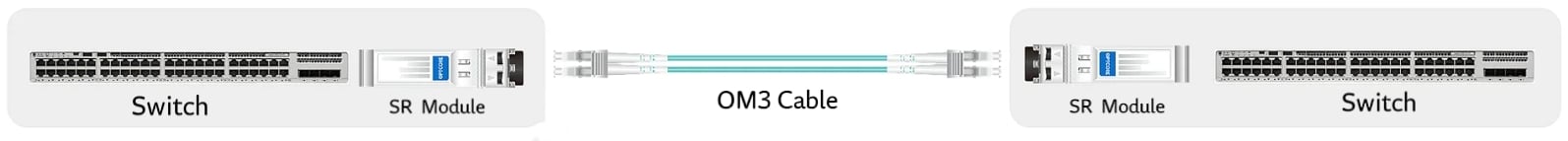

Figure 1: 10G SR with OM3 multimode fiber

Figure 2: 10G LR with OS2 single-mode fiber

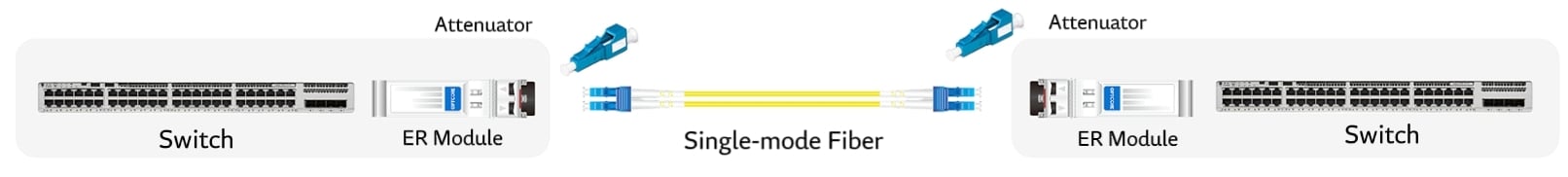

Figure 3: 10G ER with OS2 single-mode fiber and attenuator

Quick Overview of Strengths and Weaknesses

In practice, the decision often comes down to DAC vs AOC for short links and to AOC vs Fiber as the distance increases. Compare DAC vs AOC, DAC vs Fiber, and AOC vs Fiber to understand their differences in distance, cost, power consumption, and performance.

	Cost	Distance	Power Consumption	Applications
DAC	Lowest	1–10 m	Very Low	Server to switch
AOC	Medium	10–100 m	Moderate	Inter-rack connections
Fiber	Highest	>100 m	Depends on transceivers	Backbone networks

DAC vs AOC

The DAC vs. AOC discussion is common in data center design because both options are used for short-distance connections.

Where DAC Has the Advantage

The biggest advantages of DAC are cost and power efficiency. Since the cables transmit electrical signals through copper wires, they do not need lasers or other optically converting devices. This brings the overall cost down to a much lower figure. The transmission route for the signals is also simpler, which reduces latency.

Where AOC Has the Advantage

AOC offers advantages over DAC, especially in transmission distance and performance. Since the attenuation of optical signals is much lower, the transmission over AOC cables will be much higher, along with the overall data transfer rate. Since fiber cables are much thinner and lighter, they are easier to manage in a large data center.

Limitations of DAC

The only limitation for the DAC cables is the transmission distance. As data rates increase, high-frequency electrical signals degrade quickly in copper cables. In practice, DAC links usually struggle to go beyond 10 meters, which is why many deployments eventually move from DAC vs AOC comparisons to optical solutions.

DAC/AOC vs Fiber

DAC vs Fiber

When comparing DAC vs Fiber, the difference becomes more apparent because these two solutions target very different distances.

DAC works best for extremely short connections, such as links inside the same rack. It offers very low cost and minimal power consumption. Fiber links, on the other hand, can support hundreds of meters or even kilometers, depending on the optical module used. So while DAC vs Fiber may seem like a simple comparison, in practice, they serve very different roles in a network architecture.

AOC vs Fiber

The comparison between AOC vs Fiber usually comes down to flexibility versus simplicity.

AOC cables are integrated products. The optics and the fiber are already built together, which makes deployment very easy. Fiber solutions are more modular. Engineers can choose different transceivers depending on the required speed, wavelength, or distance. This flexibility means the decision between AOC vs. Fiber depends on whether the network requires long-term scalability or simply a rapid, reliable connection between the racks.

FAQs

#1 When do I use DAC instead of AOC?

For short distances, DAC vs AOC, DAC is the preferred choice if the connection is within the rack. The reason for choosing DAC over AOC in such scenarios is that DAC has the lowest cost, power consumption, and latency.

#2 Is AOC better than Fiber?

AOC vs Fiber: The choice between fiber and AOC depends on the application. AOC is simpler to implement because it is an integrated cable, whereas fiber cables are flexible since the optical modules and the fiber cables are two separate entities.

Conclusion

All three cables, DAC, AOC, and fiber cables, form a vital part of modern high-speed computer networks. The difference lies in how these cables are applied.

For example:

• DAC cables are best for extremely short distances, such as the distance between the server and the switch within the same rack.
• AOC cables are suitable for mid-range distance applications, such as the distance between two racks.
• Fiber cables are mostly used for longer distances.

In real-world scenarios, network administrators often have to consider DAC vs AOC, DAC vs Fiber, and AOC vs Fiber for the design of the network topology.
