Transceiver and Optical Cabling Solutions for HP Aruba 2530 Switch Series

Transceiver and Optical Cabling Solutions for HP Aruba 2530 Switch Series

Transceiver and optical cable are the essential part of the HP Aruba 2530 Switch family, which plays an important role in fiber-optic cabling infrastructure. This article introduces third-party compatible Transceiver and Optical Cabling Solution for HP Aruba 2530 Switch.

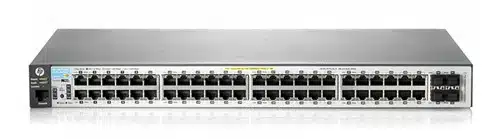

HP Aruba 2530 Switch Series Overview

The HP Aruba 2530 Switch Series consists of four fully managed Layer 2 edge switches that provide a cost-effective, reliable, and secure connection to the business network. These Gigabit Ethernet switches are designed for entry-level mid-sized enterprise networks with complete Layer 2 functionality with enhanced access security, traffic priority, IPv6 host support, and optional PoE +.

Each 2530 switch has 24 or 48 RJ-45 10/100/1000 ports and four small pluggable (SFP) slots for fiber connections. The HP 2530-24G-PoE + and HP 2530-48G-PoE + switches are IEEE 802.3af and IEEE 802.3at for up to 30 W per port for customers who are powered by Ethernet for voice, video, or wireless deployments. The HP Aruba 2530 switch family is easy to use, deploy and manage with SNMP, CLI and Web GUI. The series offers flexible walls, desktop and rack mounts; quiet operation; and has power savings, features such as IEEE 802.3z (Energy Efficient Ethernet).

HP Aruba 2530 Switch Series Features

• Cost-effective, reliable and secure Aruba Layer 2 switch series.
• ACLs, EEE, traffic prioritization.
• 8-, 24-, and 48-port Gigabit or Fast Ethernet models.
• PoE+ models for voice, video and wireless.
• Security and network management with Aruba ClearPass Policy Manager, AirWave and Central.

HP Aruba 2530 Switch Series Models

 Part NumberDescriptionSpecification
J9772AAruba 2530 48G PoE+ Switch48 RJ-45 autosensing 10/100/1000
PoE+ ports (IEEE 802.3 Type
10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3ab Type
1000BASE-T, IEEE 802.3at PoE+);
Media Type: Auto-MDIX; Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
4 fixed Gigabit Ethernet SFP ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9773AAruba 2530 24G PoE+ Switch24 RJ-45 autosensing 10/100/1000
PoE+ ports (IEEE 802.3 Type
10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3ab Type
1000BASE-T, IEEE 802.3at PoE+);
Media Type: Auto-MDIX; Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
4 fixed Gigabit Ethernet SFP ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9774AAruba 2530 8G PoE+ Switch8 RJ-45 autosensing 10/100/1000
PoE+ ports (IEEE 802.3 Type
10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3ab Type
1000BASE-T, IEEE 802.3at PoE+);
Media Type: Auto-MDIX; Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
2 dual-personality ports; each port
can be used as either an RJ-45
10/100/1000 port (IEEE 802.3 Type
10Base-T; IEEE 802.3u Type 100BaseTX;
IEEE 802.3ab1000Base-T Gigabit
Ethernet) or as a SFP slot (for use with
SFP transceivers)
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9778AAruba 2530 48 PoE+ Switch48 RJ-45 autosensing 10/100 PoE+
ports (IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX,
IEEE 802.3at PoE+); Media Type:
Auto-MDIX; Duplex: half or full
2 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE
802.3u Type 100BASE-TX, IEEE
802.3ab Type 1000BASE-T); Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
2 fixed Gigabit Ethernet SFP ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9779AAruba 2530 24 PoE+ Switch24 RJ-45 autosensing 10/100 PoE+
ports (IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX,
IEEE 802.3at PoE+); Media Type:
Auto-MDIX; Duplex: half or full
2 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE
802.3u Type 100BASE-TX, IEEE
802.3ab Type 1000BASE-T); Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
2 fixed Gigabit Ethernet SFP ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9780AAruba 2530 8 PoE+ Switch8 RJ-45 autosensing 10/100 PoE+
ports (IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX,
IEEE 802.3at PoE+); Media Type:
Auto-MDIX; Duplex: half or full
2 dual-personality ports; each
port can be used as either an
RJ-45 10/100/1000 port (IEEE
802.3 Type 10Base-T; IEEE 802.3u
Type 100Base-TX; IEEE 802.3ab
1000Base-T Gigabit Ethernet) or as
a SFP slot (for use with SFP
transceivers) ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9775AAruba 2530 48G Switch48 RJ-45 autosensing 10/100/1000
ports (IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX, IEEE
802.3ab Type 1000BASE-T); Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
4 fixed Gigabit Ethernet SFP ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9776AAruba 2530 24G Switch24 RJ-45 autosensing 10/100/1000
ports (IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX, IEEE
802.3ab Type 1000BASE-T); Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
4 fixed Gigabit Ethernet SFP ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9777AAruba 2530 8G Switch8 RJ-45 autosensing 10/100/1000
ports (IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T);
Media Type: Auto-MDIX; Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
2 dual-personality ports; each
port can be used as either an
RJ-45 10/100/1000 port (IEEE
802.3 Type 10Base-T; IEEE 802.3u
Type 100Base-TX; IEEE 802.3ab
1000Base-T Gigabit Ethernet) or as
a SFP slot (for use with SFP
transceivers) ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9781AAruba 2530 48 Switch48 RJ-45 autosensing 10/100 ports
(IEEE 802.3 Type 10BASE-T, IEEE
802.3u Type 100BASE-TX); Duplex:
half or full
2 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE
802.3u Type 100BASE-TX, IEEE
802.3ab Type 1000BASE-T); Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
2 fixed Gigabit Ethernet SFP ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9782AAruba 2530 24 Switch24 RJ-45 autosensing 10/100 ports
(IEEE 802.3 Type 10BASE-T, IEEE
802.3u Type 100BASE-TX); Duplex:
half or full
2 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE
802.3u Type 100BASE-TX, IEEE
802.3ab Type 1000BASE-T); Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
2 fixed Gigabit Ethernet SFP ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9783AAruba 2530 8 Switch8 RJ-45 autosensing 10/100 ports
(IEEE 802.3 Type 10BASE-T, IEEE
802.3u Type 100BASE-TX); Media
Type: Auto-MDIX; Duplex: half or full
2 dual-personality ports; each
port can be used as either an
RJ-45 10/100/1000 port (IEEE
802.3 Type 10Base-T; IEEE 802.3u
Type 100Base-TX; IEEE 802.3ab
1000Base-T Gigabit Ethernet) or as
a SFP slot (for use with SFP
transceivers) ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9853AAruba 2530 48G PoE+ 2SFP+ Switch48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE
802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+);
Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASETX:
half or full; 1000BASE-T: full only
2 SFP+ fixed 1000/10000 SFP+ ports
1 dual-personality (RJ-45 or USB micro-B) serial
console port
J9854AAruba 2530 24G PoE+ 2SFP+ Switch24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE
802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+);
Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASETX:
half or full; 1000BASE-T: full only
2 SFP+ fixed 1000/10000 SFP+ ports
1 dual-personality (RJ-45 or USB micro-B) serial
console port
J9855AAruba 2530 48G 2SFP+ Switch48 RJ-45 autosensing 10/100/1000
ports (IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX, IEEE
802.3ab Type 1000BASE-T); Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
2 SFP+ fixed 1000/10000 SFP+ ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
J9856AAruba 2530 24G 2SFP+ Switch24 RJ-45 autosensing 10/100/1000
ports (IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX, IEEE
802.3ab Type 1000BASE-T); Duplex:
10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
2 SFP+ fixed 1000/10000 SFP+ ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port
JL070AAruba 2530 8 PoE+ Internal PS Switch8 RJ-45 autosensing 10/100 PoE+
ports (IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX,
IEEE 802.3at PoE+); Media Type:
Auto-MDIX; Duplex: half or full 2
dual-personality ports; each port
can be used as either an RJ-45
10/100/1000 port (IEEE 802.3
Type 10BASE-T; IEEE 802.3u
Type 100BASE-TX; IEEE 802.3ab
1000BASE-T Gigabit Ethernet) or
as a SFP slot (for use with SFP
transceivers) ports
1 dual-personality (RJ-45 or USB
micro-B) serial console port

Transceiver and Optical Cabling Solutions for HP Aruba 2530 Switch Series

HP Aruba 2530 Switch Series supports 100M SFP, 1G SFP, 10G SFP+ transceivers and OM3/OM4 optical cables. The following tables list the supported optics on the HP Aruba 2530 Switch Series. This table will help you to configure the right optics for your HP Aruba 2530 Switches.

 Part NumberDescription
 100BASE SFP Optical Transceiver
 J9054C  -CHP J9054C   Compatible X111 100M SFP LC FX Optical Transceiver
 J9099B-C HP J9099B Compatible X112 100M SFP LC BX-D Optical Transceiver
 J9100B-C  HP J9100B Compatible X112 100M SFP LC BX-U Optical Transceiver
 1G SFP Optical Transceiver
 J8177C -CHP J8177C  Compatible X121 1G SFP RJ45 T Optical Transceiver
 J4858C-CHPJ4858C Compatible X121 1G SFP LC SX Optical Transceiver
 J4859C-CHP J4859C Compatible X121 1G SFP LC LX Optical Transceiver
 J4860C-CHP J4860C Compatible X121 1G SFP LC LH70 Optical Transceiver
 10G SFP+ Optical Transceiver
J9150A-CHP J9150A Compatible X132 10G SFP+ LC SR Optical Transceiver
J9151A-CHP J9151A Compatible X13210G SFP+ LC LR Optical Transceiver
J9152A-CHP J9152A Compatible X132 10G SFP+ LC LRM Optical Transceiver
J9153A-CHP J9153A Compatible X130 10G SFP+ LC ER 40km Optical Transceiver
 10G SFP+ DAC Cables
J9281B-CHP J9281B Compatible X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9283B-CHP J9283B Compatible X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
J9285B-CHP J9285B Compatible X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable
J9286B-CHP J9286B Compatible X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable
 10G XFP/SFP+ DAC Cables
J9300A-CHP J9300A Compatible X244 10G XFP to SFP+ 1m Direct Attach Copper Cable
J9301A-CHP J9301A Compatible X244 10G XFP to SFP+ 3m Direct Attach Copper Cable
J9302A-CHP J9302A Compatible X244 10G XFP to SFP+ 5m Direct Attach Copper Cable
 Fiber Optical Cables
 AJ833A-CHP AJ833A Compatible LC to LC Multi-mode OM3 2-Fiber 0.5m Fiber Cable
 AJ834A-CHP  AJ834A Compatible LC to LC Multi-mode OM3 2-Fiber 1.0m Fiber Cable
 AJ835A-CHP  AJ835A Compatible LC to LC Multi-mode OM3 2-Fiber 2.0m Fiber Cable
 AJ836A-CHP  AJ835A Compatible LC to LC Multi-mode OM3 2-Fiber 5.0m Fiber Cable
 AJ837A-CHP  AJ837A Compatible LC to LC Multi-mode OM3 2-Fiber 15.0m Fiber Cable
 AJ838A-CHP  AJ837A Compatible LC to LC Multi-mode OM3 2-Fiber 30.0m Fiber Cable
 AJ839A-CHP  AJ837A Compatible LC to LC Multi-mode OM3 2-Fiber 50.0m Fiber Cable
 BK837A-CHP PremierFlex BK837A Compatible 0.5 m OM3+ LC/LC Optical Cable
 BK838A-CHP PremierFlex BK838A Compatible 1 m OM3+ LC/LC Optical Cable
 BK839A-CHP PremierFlex BK839A Compatible 2 m OM3+ LC/LC Optical Cable
 BK840A-CHP PremierFlex BK840A Compatible 5 m OM3+ LC/LC Optical Cable
 BK841A-CHP PremierFlex BK841A Compatible 15 m OM3+ LC/LC Optical Cable
 BK842A-CHP PremierFlex BK842A Compatible 30 m OM3+ LC/LC Optical Cable
 BK843A-CHP PremierFlex BK843A Compatible 40 m OM3+ LC/LC Optical Cable
 QK732A-CHP Premier Flex QK732A Compatible LC/LC Multi-mode OM4 2 Fiber 1m Fiber Cable
 QK733A-CHP Premier Flex QK733A Compatible LC/LC Multi-mode OM4 2 Fiber 2m Fiber Cable
 QK734A-CHP Premier Flex QK734A Compatible LC/LC Multi-mode OM4 2 Fiber 5m Fiber Cable
 QK735A-CHP Premier Flex QK735A Compatible LC/LC Multi-mode OM4 2 Fiber 15m Fiber Cable
 QK736A-CHP Premier Flex QK736A Compatible LC/LC Multi-mode OM4 2 Fiber 30m Fiber Cable
 QK737A-CHP Premier Flex QK737A Compatible LC/LC Multi-mode OM4 2 Fiber 50m Fiber Cable

Conclusion

The HP 2530 switch delivers robust functionality through its ports. They have 24GBase-T RJ-45 ports, automatic and support PoE + and 4 fiber SFP ports for longer connections. As a result, SMEs have a range of connectivity options and simplify deployment. PoE + features further drive value so that the organization can power directly through the Ethernet voice, video and other devices. HP 2530 Series switches typically provide 8-48 RJ-45 ports and fiber optic connections. HP also considers the use of CLI, GUI, and SNMP options to manage a range of applications.

The implementation of HP 2530 switch provides a great deal of connectivity for our large-scale test environment. The RJ-45 port provides a robust connection, and we can also have an SFP port connected to another switch. In general, the user interface provided by HP is designed for simplicity and ease of use. The interface is easy to understand, although it does not find some graphical representations in other devices, it allows the user to quickly and easily complete the work.

The  Transceiver and Optical Cabling Solutions listed in the tables are manufactured by industry standards and the MSA (Multi-Source Agreement). More importantly, you could order them with high quality and 100% compatibility at an affordable price from Optcore, and save your money on overpriced optics. Optcore recommends IT manager choosing the compatible optics solution from 3rd party vendor, and will be glad to offer our expertise in choosing the fiber infrastructure gears that best meets your needs.

Note: All trademarks, product, company names, images mentioned are the property of their respective owners and used for comparative purposes only. All the recommended transceivers and cables are from 3rd Party vendor, they are NOT OEM products and are NOT certified or endorsed by OEM.

Leave a Reply

Need help? email us sales@optcore.net, or chat on Skype: optcore-sfp Dismiss
