Understanding 10/100/1000BASE-T: A Simple Guide

In Ethernet networks, the RJ45 port is everywhere. You can find it on home routers, enterprise switches, servers, and even many industrial devices. Most network connections still rely on twisted-pair copper cables. If you take a look at the technical specifications of these devices, you will notice that they often support 10BASE-T, 100BASE-TX, and 1000BASE-T.

The term is based on the IEEE 802.3 standard, which defines the Ethernet protocol and specifies the speeds achievable over twisted-pair cabling. It is actually based on three different standards defined by the protocol. Modern network cards and switches support auto-negotiation, so a single RJ45 port can operate at multiple speeds. As a result, manufacturers typically list the interface as 10/100/1000BASE-T Ethernet.

What Does 10/100/1000BASE-T Mean?

The name follows a simple rule defined by IEEE. The first number indicates the link’s maximum speed.

• 1000 means 1000 Mbps, or 1 Gigabit per second.
• The word BASE means baseband transmission. In simple terms, the cable carries one signal channel instead of splitting the signal into multiple frequency channels.
• The last letter T stands for Twisted Pair, which refers to the copper cable used in the connection.

Using this rule, we get three common Ethernet speeds.

Ethernet Standard	Data Rate	Common Name
10BASE-T	10 Mbps	Ethernet
100BASE-TX	100 Mbps	Fast Ethernet
1000BASE-T	1 Gbps	Gigabit Ethernet

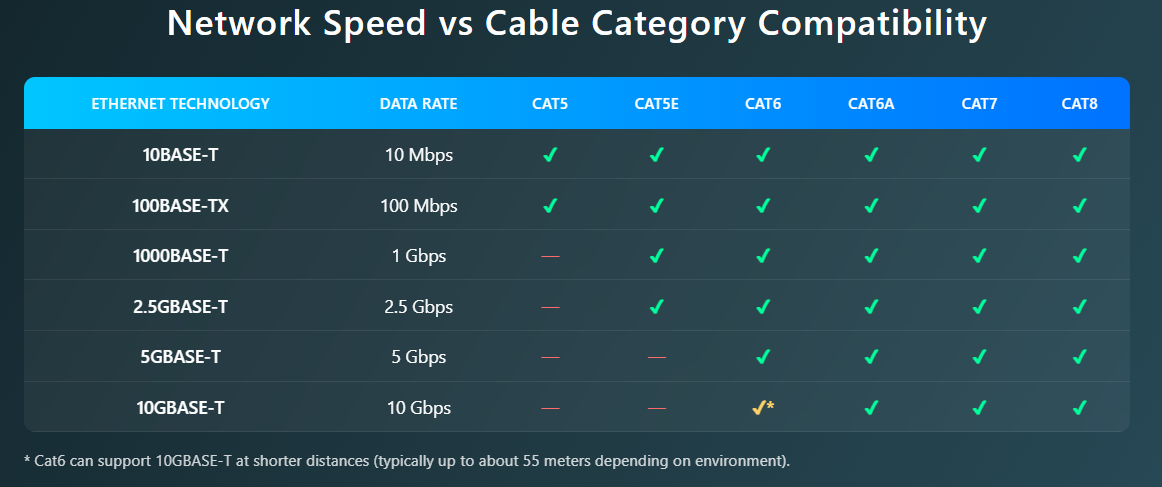

Ethernet Speeds and Cable Categories

When people talk about BASE-T networks, they often mention cable categories such as Cat5e, Cat6, Cat6a, Cat7, and Cat8.

These “Cat” designations refer to different categories of twisted-pair cables. The higher the category number, the better the cable will perform in terms of bandwidth. One thing that is easy to misunderstand is that Ethernet is not a type of cable. It is a protocol. What people call an “Ethernet cable” is simply a cable designed to carry Ethernet signals.

Early Ethernet networks actually used coaxial cables. Those cables were thick and difficult to install. As networks grew larger, twisted-pair cables became the better option. This change also led to the development of the BASE-T Ethernet standards. Older Cat3 cables were primarily used for telephone systems. Then, Cat5 cables were introduced to support 100 Mbps Fast Ethernet (100BASE-T). When Gigabit Ethernet appeared, Cat5 was upgraded to Cat5e (Enhanced Cat5). Even today, Cat5e is still widely used for 1000BASE-T Gigabit Ethernet networks.

Another important feature of 10/100/1000BASE-T ports is Auto-Negotiation. When two devices connect through an Ethernet cable, they first exchange information about their capabilities. Then they negotiate the fastest speed that both sides support. For example, if a Gigabit switch connects to a device that only supports Fast Ethernet (100BASE-T), the link will automatically run at 100 Mbps. This is why new and old network devices can still work together without manual configuration.

10/100/1000BASE-T and SFP Copper Modules

Most network devices provide RJ45 Ethernet ports for 10/100/1000BASE-T connections. You can see these ports on routers, switches, and server motherboards. They connect directly using Cat5e or Cat6 cables.

In enterprise networks and data centers, switches often include SFP slots as well. SFP (Small Form-factor Pluggable) is a modular interface. Instead of a fixed port, the switch allows inserting different modules based on the connection type.

Inside the 1000BASE-T SFP module, a BASE-T PHY chip processes the signals required to carry Ethernet over copper wires. The switch communicates with the module through the SFP interface, while the module connects to the network through an RJ45 port. In simple terms, the module converts the SFP interface into a standard RJ45 Ethernet port.

This is useful when a switch only provides SFP slots, but you still need to connect standard copper Ethernet devices. By inserting a 1000BASE-T SFP module, the switch can connect to normal 10/100/1000BASE-T equipment. This setup is common in enterprise networks, lab environments, and mixed fiber-copper network designs.

Typical Applications of 10/100/1000BASE-T

Because it is inexpensive, easy to deploy, and fast enough for most tasks, 1000BASE-T (Gigabit Ethernet) has become the most widely used Ethernet access technology. In most network designs, Gigabit Ethernet is used at the access layer, where endpoint devices connect to the network. Faster links are usually used for aggregation or core layers.

• In office networks, desktop computers, printers, wireless access points, and IP phones typically connect via Gigabit RJ45 ports.
• In data centers, Gigabit Ethernet is used for server management networks. In many cases, a server contains a dedicated RJ45 management port connected to a management switch.
• In home networks or small offices, routers, NAS devices, and smart TVs usually connect through a Gigabit Ethernet port.
• In industries such as retail, healthcare, and logistics, systems such as POS, warehouse management, and electronic medical record systems operate on local networks using Gigabit Ethernet.

FAQs

#1 Which wire pairs are used on a 1000BASE-T network?

1000BASE-T uses all four twisted pairs (8 wires) inside a standard Ethernet cable. Each pair transmits and receives data simultaneously, enabling Gigabit Ethernet to achieve 1 Gbps over copper cables. If a cable only has two connected pairs, the link will usually drop to 100 Mbps instead of the Gigabit speed. This is a common reason why some Ethernet connections run slower than expected.

#2 Is 1000BASE-T the same as RJ45?

Not exactly. 1000BASE-T is an Ethernet standard that specifies how to transmit Gigabit data over twisted-pair copper cabling. RJ45 is the physical connector used on Ethernet cables and ports. Most networks today use 1000BASE-T or 100BASE-T over RJ45 ports with Cat5e or Cat6 cables, which is why the two terms are often mentioned together.

Conclusion

10/100/1000BASE-T is the most common Ethernet standard for copper networks. It specifies how 10 Mbps, 100 Mbps, and 1 Gbps data is transmitted over twisted-pair cables. With Auto-Negotiation, devices with different speeds can still connect without manual configuration.

In real deployments, 10/100/1000BASE-T networks typically use Cat5e or Cat6 cables. If needed, they can also connect to SFP-based switches via 1000BASE-T copper SFP modules. Because it is reliable, cost-effective, and backward compatible, 10/100/1000BASE-T remains one of the most important technologies in modern LAN access networks.
