SFP optics solution for Juniper EX2200 switch

Posted on by Cosmo17
03
Nov
The Juniper Networks EX2200 Ethernet Switch provides an affordable, entry-level, standalone solution for the access layer deployment of branch offices, remote offices and campus networks. This article introduces third-party compatible transceiver solution for Juniper EX2200 Switch.

Juniper EX2200 Switch Overview

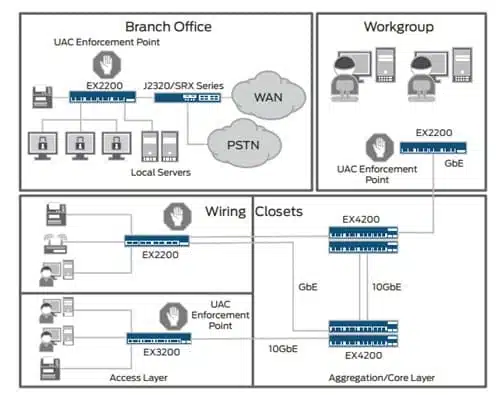

Juniper Networks EX2200 series fixed-configuration Ethernet Switches with complete L2 switching and basic L3 switching to meet today’s high-performance enterprise branch offices and low-density wiring closet connectivity requirements. The product offers four platform configurations: 24 and 48 10/100 / 1000BASE-T ports with Power over Ethernet (PoE) or without Power over Ethernet (PoE). The EX2200 Switch with Power over Ethernet (PoE) has a maximum system budget of 405 W and can deliver either 15.4 W of 802.3af Class 3 PoE-based power or 30 W of power over 802.3at PoE + to provide a converged network of telephones, cameras, Multi-station IEEE802.11n wireless access points and video phones and other networking equipment to provide support.

Juniper EX2200 Switch Features

The Juniper EX2200 series is a fixed-configuration Ethernet switch with full Layer 2 switching and basic Layer 3 switching with the following key features:
  • Integrates 4 SFP Gigabit Ethernet uplink ports on the front panel to provide high-speed connectivity to aggregation switches and other upstream devices
  • Fixed power and uplink ports for easy operation
  • Low-power, low noise fan and 10-inch deep chassis for environmental protection and flexible deployment
  • Support L2 protocol and L3 protocol (such as RIP and static routing) in the basic license
  • The modular Junos operating system prevents switch restarts caused by a protocol failure

Juniper EX2200 Switch Models

Juniper EX2200 switch features 100Base and 1000Base LC SFP ports and supports a wide line of SFP optics and fiber patch cables. The following tables list the supported SFP optics and fiber cables on the Juniper EX2200 Switch Series. This table will help you to configure the right optics for your Juniper EX2200 Switch.
 Part Number Description Specification

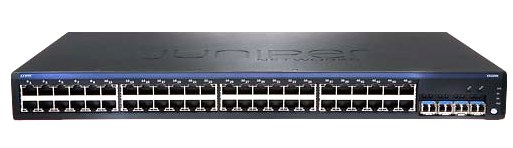

EX2200-24T 24-port 10/100/1000BASE-T Ethernet Switch with four SFP Gigabit Ethernet uplink ports • Switching Engine Model: Store and forward • DRAM: 512 MB • Flash: 1 GB • CPU: 800 MHz ARM CPU • GbE port density per system: 28 (24 host ports + four-port GbE uplinks)
EX2200-24P 24-port 10/100/1000BASE-T Ethernet Switch with PoE+ and four SFP Gigabit Ethernet uplink ports • Switching Engine Model: Store and forward • DRAM: 512 MB • Flash: 1 GB • CPU: 800 MHz ARM CPU • GbE port density per system: 28 (24 host ports + four-port GbE uplinks)
EX2200-48T 48-port 10/100/1000BASE-T Ethernet Switch with four SFP Gigabit Ethernet uplink ports • Switching Engine Model: Store and forward • DRAM: 512 MB • Flash: 1 GB • CPU: 800 MHz ARM CPU • GbE port density per system: 52 (48 host ports+ four-port GbE uplinks)
EX2200-48P 48-port 10/100/1000BASE-T Ethernet Switch with PoE+ and four SFP Gigabit Ethernet uplink ports • Switching Engine Model: Store and forward • DRAM: 512 MB • Flash: 1 GB • CPU: 800 MHz ARM CPU • GbE port density per system: 52 (48 host ports+ four-port GbE uplinks)

Transceiver and Optical Cabling Solutions for Juniper EX2200 Switch

Part Number Description
EX-SFP-1FE-FX SFP 100BASE-FX; LC connector; 1310 nm; 2 km reach on multimode fiber
EX-SFP-1FE-LH SFP 100BASE-LX; LC connector; 1310 nm; 80 km reach on single-mode fiber
EX-SFP-1FE-LX SFP 100BASE-LX; LC connector; 1310 nm; 10 km reach on single-mode fiber
EX-SFP-1FE-LX40K SFP 100BASE-LX; LC connector; 1310 nm; 40 km reach on single-mode fiber
EX-SFP-FE20KT13R15 SFP 100BASE-BX; LC connector; TX 1310 nm/RX 1550 nm; 20 km reach on single-strand, single-mode fiber
EX-SFP-FE20KT15R13 SFP 100BASE-BX; LC connector; TX 1550 nm/RX 1310 nm; 20 km reach on single-strand, single-mode fiber
EX-SFP-1GE-T SFP 10/100/1000BASE-T copper; RJ-45 connector; 100 m reach on UTP
EX-SFP-1GE-SX SFP 1000BASE-SX; LC connector; 850 nm; 550 m reach on multimode fiber
EX-SFP-1GE-LX SFP 1000BASE-LX Gigabit Ethernet Optics, 1310 nm for 10 km transmission on SMF)
EX-SFP-1GE-LX40K SFP 1000BASE-LX; LC connector; 1310 nm; 40 km reach on single-mode fiber
EX-SFP-1GE-LH SFP 1000BASE-LH; LC connector; 1550 nm; 70 km reach on single-mode fiber
EX-SFP-GE10KT13R14 SFP 1000BASE-BX; TX 1310 nm/RX 1490 nm for 10 km transmission on single-strand, single-mode fiber
EX-SFP-GE10KT13R15 SFP 1000BASE-BX; TX 1310 nm/RX 1550 nm for 10 km transmission on single-strand, single-mode fiber
EX-SFP-GE10KT14R13 SFP 1000BASE-BX; TX 1490 nm/RX 1310 nm for 10 km transmission on single-strand, single-mode fiber
EX-SFP-GE10KT15R13 SFP 1000BASE-BX; TX 1550 nm/RX 1310 nm for 10 km transmission on single-strand, single-mode fiber
EX-SFP-GE40KT13R15 SFP 1000BASE-BX; TX 1310 nm/RX 1550 nm for 40 km transmission on single-strand, single-mode fiber
EX-SFP-GE40KT15R13 SFP 1000BASE-BX; TX 1550 nm/RX 1310 nm for 40 km transmission on single-strand, single-mode fiber

Conclusion

The Juniper Networks EX2200 line of Ethernet switches offers a compact, high-performance solution for supporting today’s converged network access deployments. The transceiver and cabling solutions listed in the tables are manufactured by industry standards and the MSA (Multi-Source Agreement). More importantly, you could order them with high quality and 100% compatibility at an affordable price from Optcore, and save your money on overpriced optics. Optcore recommends IT manager choosing the compatible transceiver module and optical cabling solution from 3rd party vendor, and will be glad to offer our expertise in choosing the fiber network gears that best meets your needs.
