0~2Mbps TTL 1×9 BiDi Long Reach Transceiver Module (Bi-directional, 1310nm or 1550nm, 40km, SC/FC/ST, 0~70°C)
At present, the maximum transmission distance support only ~20km in low-speed data (0~2MHz) optical transmission for 485/232 data or CPU serial communication in the field of industrial control. More and more IT users are now asking for longer transmission distances to better overcome the link loss caused by fiber multi-connectors. In response to this market demand, we developed 0-2Mbps low-speed long-distance optical transceiver that supports the maximum
transmission distance of 40km.
The 0~2Mbps TTL 1*9 BiDi long-distance optical transceivers family from Optcore provides the system designer and manufacturers with products to implement a range of industrial control, special low data rate Ethernet designs at the 0~2Mbps rate. This series fiber optic transceiver are all supplied in the industry-standard 1×9 SIP package. The transceivers provide high performance, cost-effective optical modules for long-distance 40km transmission distance over single-mode fiber cable (SMF).
This 0~2Mbps TTL 1*9 BiDi long-distance transceiver helps you convert copper signals to the optical fiber in Industrial control, power plants, subways. They are usually used for serial communications over fiber like RS-232/422/485 serial to fiber media converter and industrial Ethernet networks to fiber networks communications like industrial fiber optic converters and industrial Ethernet switches.
The OTB2-xx40xxCR family 1×9 BiDi transceiver optics are commercial temperature grade products. Industrial temperature grade 1×9 transceivers for industrial Ethernet application in the hardened environment are also available, click here to learn more about OTB2-xx40xxTR (0~2Mbps TTL 1×9 BiDi 40km Industrial Transceiver).
● Standard type (0~70ºC) for commonly commercial application, provided with the lowest cost
● Industrial grade (-40~85ºC) is made with robust and reliable components, to meet the needs of Industrial Ethernet application under hardened environmental conditions. It is designed for industrial media converter, Industrial Ethernet Switches, rugged switch, and other industrial fiber connection equipment.
• Simplex SC/ST/FC receptacle single-mode optical interface
• Single +3.3V or +5V Power Supply
• Standard TTL data output with signal detect indication, compatible with CMOS level
• Standard 1×9 footprint package
• Operating wavelength 1310nm or 1550nm
• Super low power consumption design, applied to some special require
• Optional transmission bit rate with down to 0bps and up to 2Mbps
• Operating case temperature: Standard 0 to +70°C
• ROHS compliant and Lead-Free
|Part Number||OTB2-xx40xxCR||Form Factor||1×9 BiDi|
|Data Rate||0~2 Mb/s||Wavelength||1310nm-TX/1550nm-RX|
|Max Distance||40 km||Fiber Type||Single Mode (SMF)|
|Voltage||3.3v or 5v||Optical Components||FP/PIN|
|Transmitter Power||-12 ~ -4 dBm||Extinction ratio||> 9 dB|
|Receiver Sensitivity||< -38 dBm||Connector||Simplex SC, ST or FC|
|Environment||Operating: 0°C to 70°C|
Storage: -40°C to 85°C
|Application||• Industrial Ethernet Applications such as Industrial Ethernet|
Switches, Industrial Ethernet Media Converters, Industrial Fiber
• Serial Communications over fiber: Industrial
RS-232/RS-422/RS-485 serial to fiber media converter, industrial
RS-232 to RS-422 and RS-485 Adapters
• RS232/RS485/RS422 optical-electrical converter for electric
power control, industrial control, industrial computing
FDA 21CFR 1040.10 and 1040.11

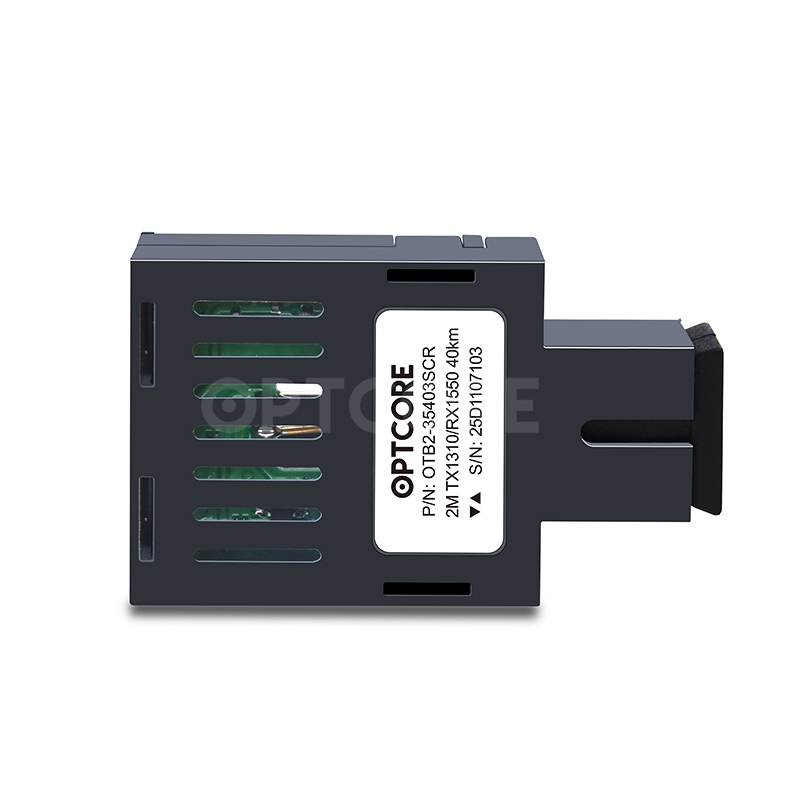

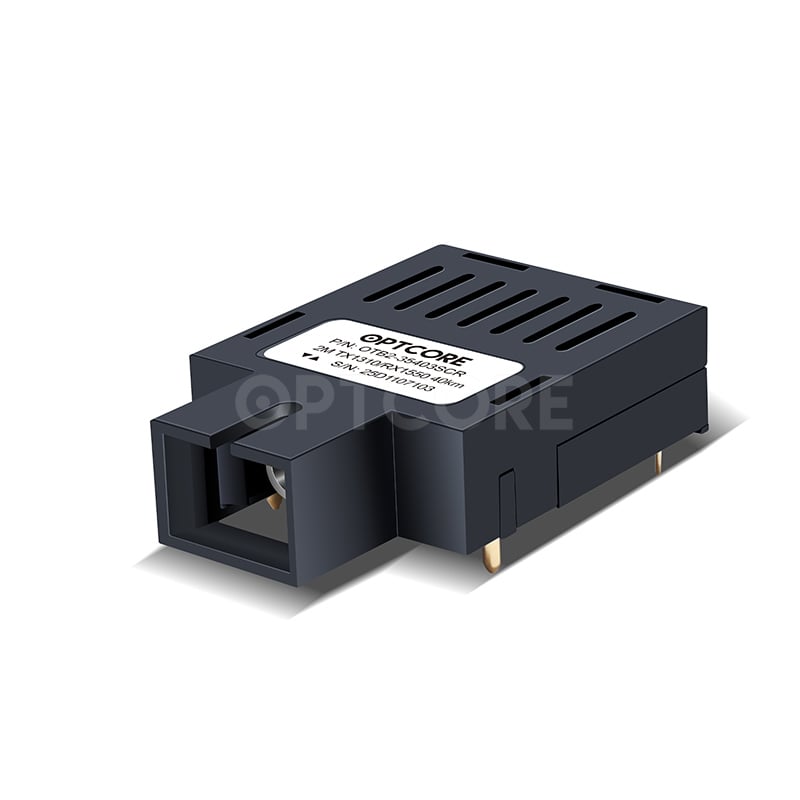

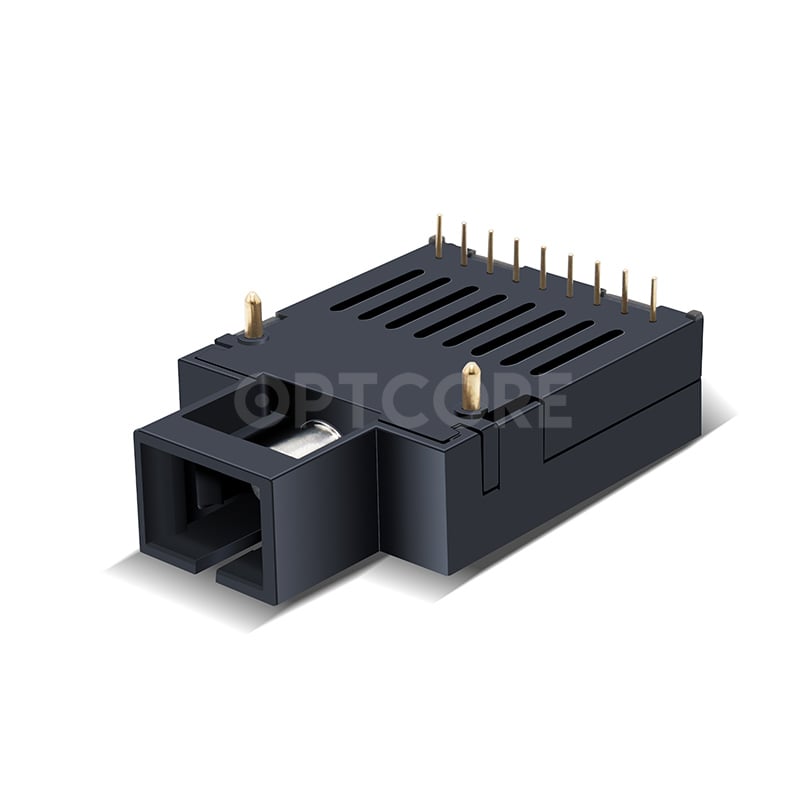

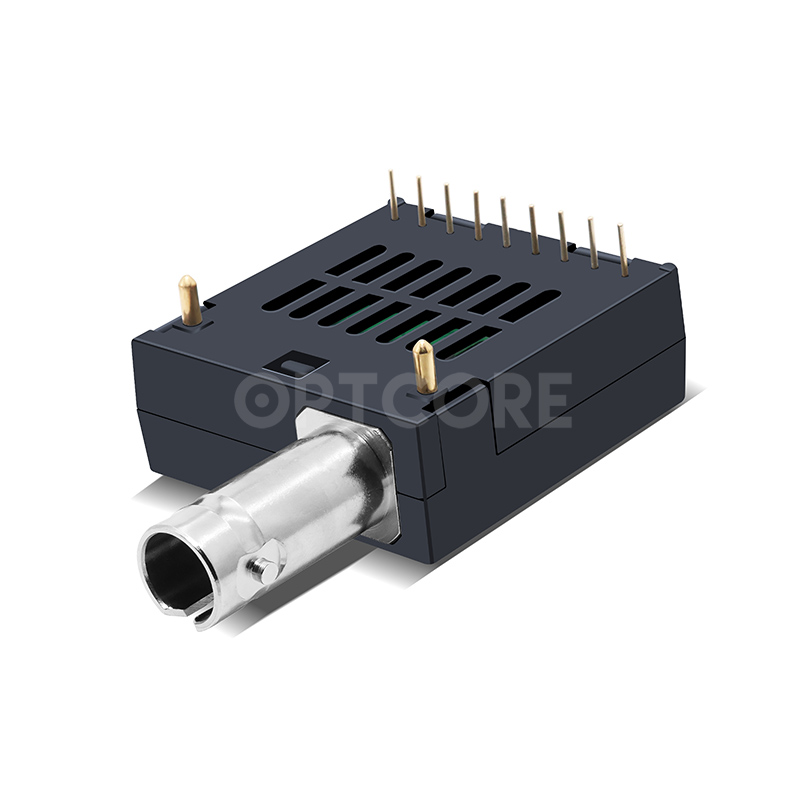

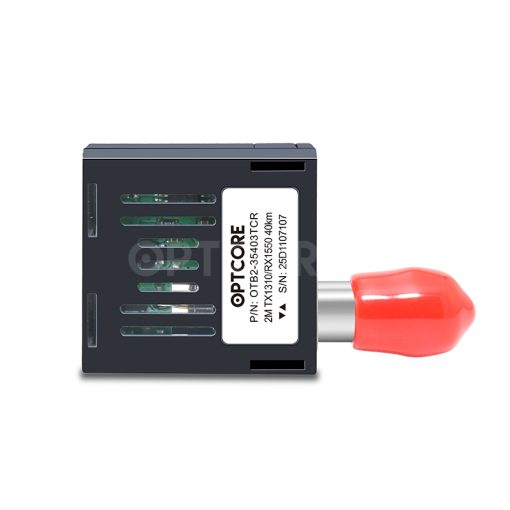

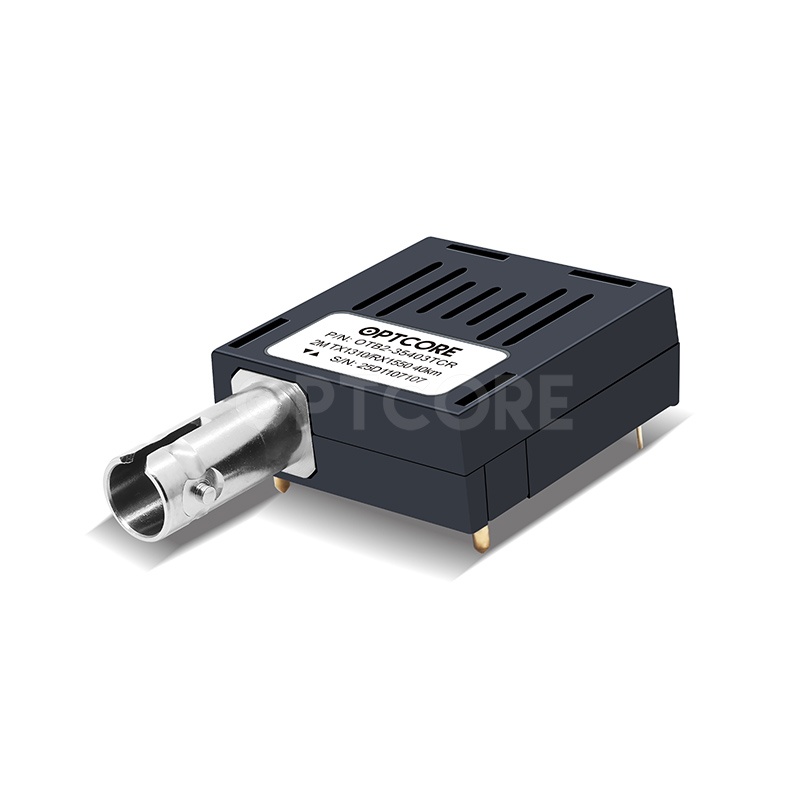

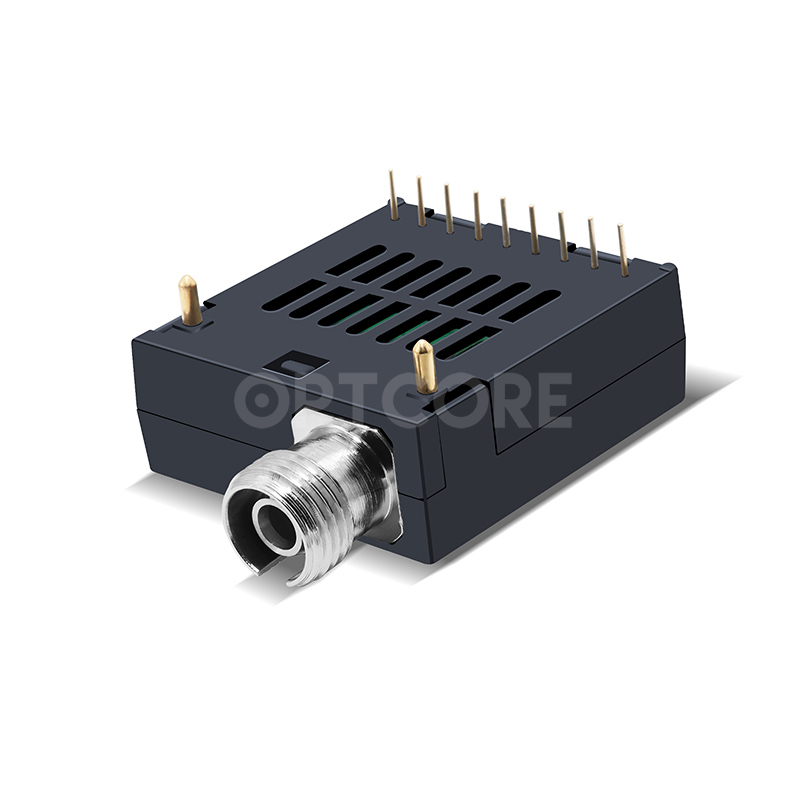

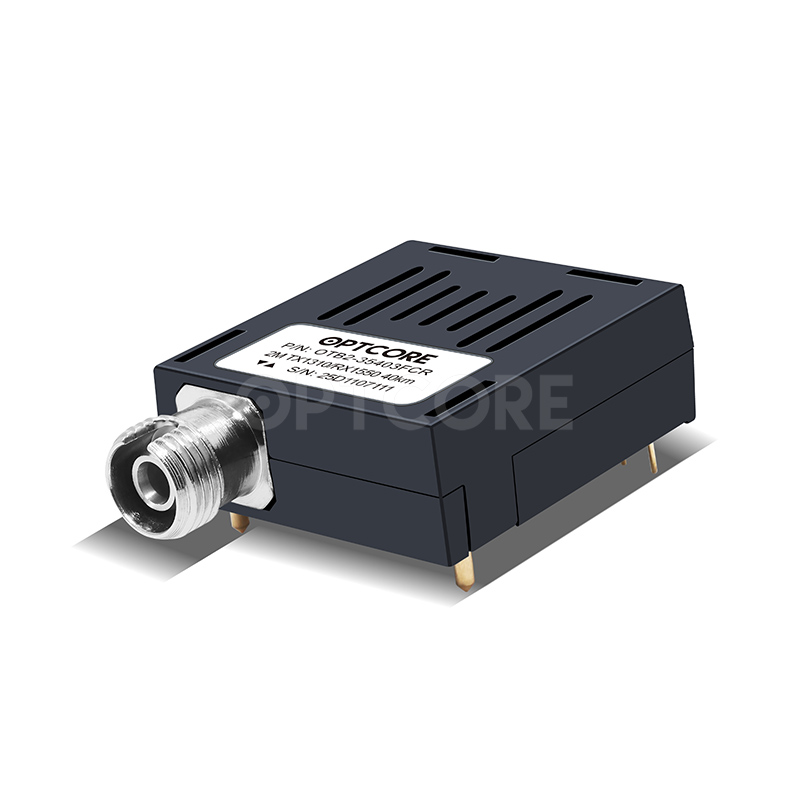

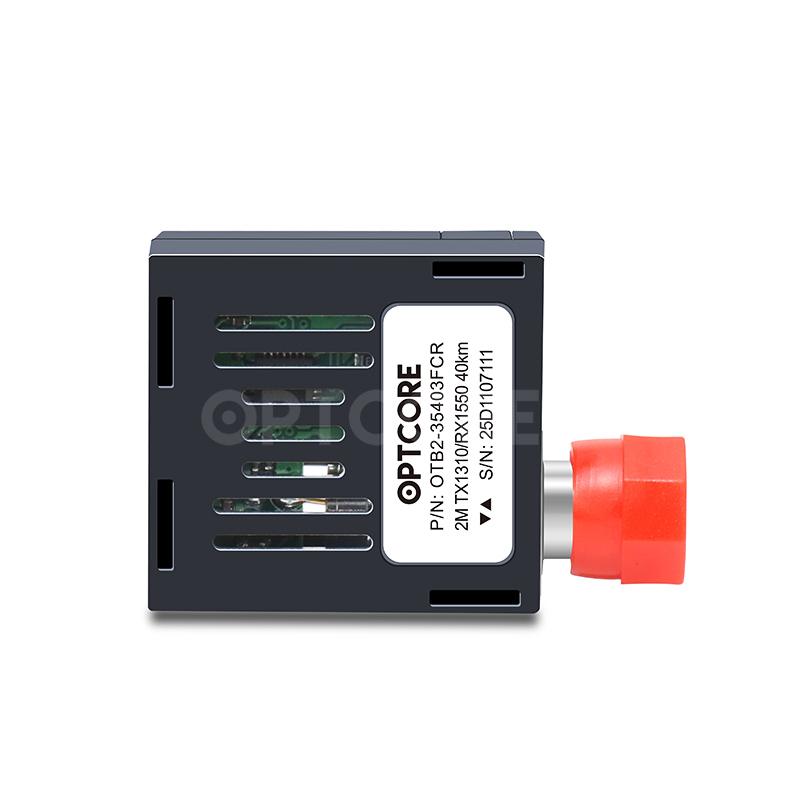

|OTB2-35403SCR||0~2Mbps TTL 1×9 BiDi Transceiver,1310nm-TX/1550nm-RX,40km,3.3V,SC,0~70ºC|
|OTB2-53403SCR||0~2Mbps TTL 1×9 BiDi Transceiver,1550nm-TX/1310nm-RX,40km,3.3V,SC,0~70ºC|
|OTB2-35403TCR||0~2Mbps TTL 1×9 BiDi Transceiver,1310nm-TX/1550nm-RX,40km,3.3V,ST,0~70ºC|
|OTB2-53403TCR||0~2Mbps TTL 1×9 BiDi Transceiver,1550nm-TX/1310nm-RX,40km,3.3V,ST,0~70ºC|
|OTB2-35403FCR||0~2Mbps TTL 1×9 BiDi Transceiver,1310nm-TX/1550nm-RX,40km,3.3V,FC,0~70ºC|
|OTB2-53403FCR||0~2Mbps TTL 1×9 BiDi Transceiver,1550nm-TX/1310nm-RX,40km,3.3V,FC,0~70ºC|
|OTB2-35405SCR||0~2Mbps TTL 1×9 BiDi Transceiver,1310nm-TX/1550nm-RX,40km,5V,SC,0~70ºC|
|OTB2-53405SCR||0~2Mbps TTL 1×9 BiDi Transceiver,1550nm-TX/1310nm-RX,40km,5V,SC,0~70ºC|
|OTB2-35405TCR||0~2Mbps TTL 1×9 BiDi Transceiver,1310nm-TX/1550nm-RX,40km,5V,ST,0~70ºC|
|OTB2-53405TCR||0~2Mbps TTL 1×9 BiDi Transceiver,1550nm-TX/1310nm-RX,40km,5V,ST,0~70ºC|
|OTB2-35405FCR||0~2Mbps TTL 1×9 BiDi Transceiver,1310nm-TX/1550nm-RX,40km,5V,FC,0~70ºC|
|OTB2-53405FCR||0~2Mbps TTL 1×9 BiDi Transceiver,1550nm-TX/1310nm-RX,40km,5V,FC,0~70ºC|
! This 0-2Mbps low-speed long-distance transceiver with the same application, outline size, pin definition like the conventional 0-2M low-speed transceiver (OPT2-3120xxxR series), but can NOT interconnect with each other.
! The rate of this transceiver module (Ex. The 8th pin of this transceiver) supports max 2Mbps.
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
