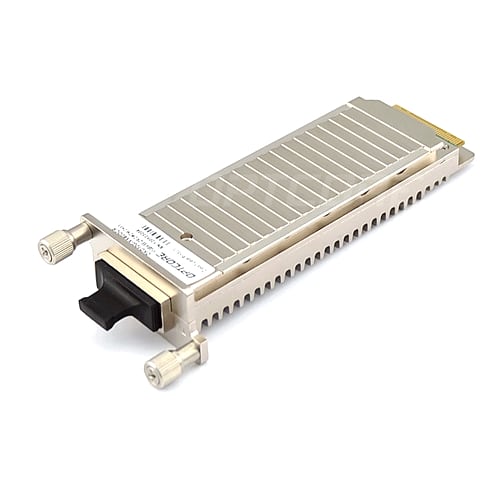

Huawei XENPAK-SX-MM850 Compatible 10GBASE-SR MMF 850nm 300m XENPAK Transceiver
Optcore’s OXK10G-8503DCR-HW is programmed to be compatible with Huawei network equipment including Ethernet Switches and Ethernet Routers for data center application. It is an ideal equivalent to Huawei XENPAK-SX-MM850 10GBASE-SR XENPAK module.
The XENPAK transceiver module provides 10-Gigabit connectivity up to 300m on multi-mode fiber (MMF) for data center, enterprise wiring closet and service provider transport applications. It fully complies with the XENPAK Multi-Sourcing Agreement (MSA) and can be used with any MSA compliant equipment. The XENPAK transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
• Compatible with XENPAK MSA
• Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
• Transmission Distance up to 300m on MMF
• Vertical Cavity Surface Emitting Laser at 850nm
• Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
• Management and control via MDIO 2-wire interface
• Power Supply: +3.3V, APS(+1.2V)
• Diagnostic Optics Monitoring
• ROHS compliant and Lead-Free
|OEM Part Number||XENPAK-SX-MM850||Optcore Part Number||OXK10G-8503DCR-HW|
|Form Factor||XENPAK||Data Rate||10Gb/s|
|Wavelength||850 nm||Fiber Type||MMF|
|Max Distance||300m||Optical Components||VCSEL/PIN|
|Transmitter Power||-7.3 ~ -1.3 dBm||Extinction ratio||> 3.5 dB|
|Receiver Sensitivity||< -9 dBm||Receiver Overload||> 0.5 dBm|
|Connector||Duplex SC||Digital Diagnostic Monitoring||Yes|
|Environment||Operating: 0°C to 70°C|
Storage: -40°C to 85°C
10G Fiber Channel,Switches and Routers
FDA 21CFR 1040.10 and 1040.11
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by Huawei.
