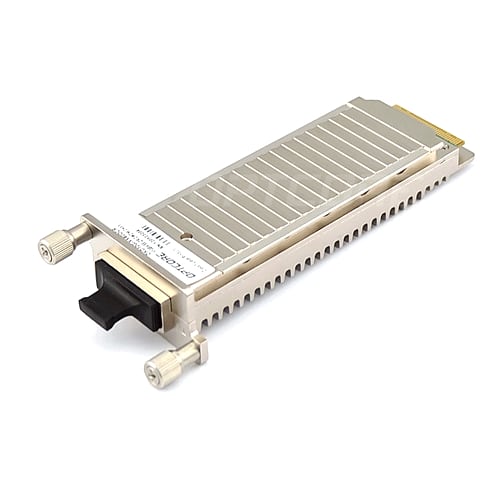

HPE JD104A Compatible 10GBASE-LR SMF 1310nm 10km XENPAK Transceiver Module
Optcore’s OXK10G-3110DCR-HPE is a high performance and cost effective XENPAK transceiver module, which is programmed to be compatible with HPE network equipment including Ethernet Switches,Ethernet Routers and Network Interface Cards (NICs). It is an ideal equivalent toHPE JD104A 10GBASE-LR XENPAK module.
The XENPAK transceiver module provides 10-Gigabit connectivity up to 10km on single mode fiber (SMF) for data center, enterprise wiring closet and service provider transport applications. It fully complies with the XENPAK Multi-Sourcing Agreement (MSA) and can be used with any MSA compliant equipment. The XENPAK transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
• Compatible with XENPAK MSA
• Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps
• Transmission Distance up to 10km on SMF
• DFB Laser at 1310nm
• Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
• Management and control via MDIO 2-wire interface
• Power Supply: +3.3V, APS(+1.2V)
• Diagnostic Optics Monitoring
• ROHS compliant and Lead-Free
|OEM Part Number||JD104A||Optcore Part Number||OXK10G-3110DCR-HPE|
|Form Factor||XENPAK||Data Rate||10Gb/s|
|Wavelength||1310 nm||Fiber Type||SMF|
|Max Distance||10 km||Optical Components||DFB/PIN|
|Transmitter Power||-5 ~ 0.5 dBm||Extinction ratio||> 3.5 dB|
|Receiver Sensitivity||< -14.4 dBm||Receiver Overload||> 0.5 dBm|
|Connector||Duplex SC||Digital Diagnostic Monitoring||Yes|
|Environment||Operating: 0°C to 70°C|
Storage: -40°C to 85°C
10G Fiber Channel,Switches and Routers
FDA 21CFR 1040.10 and 1040.11
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by HPE.
