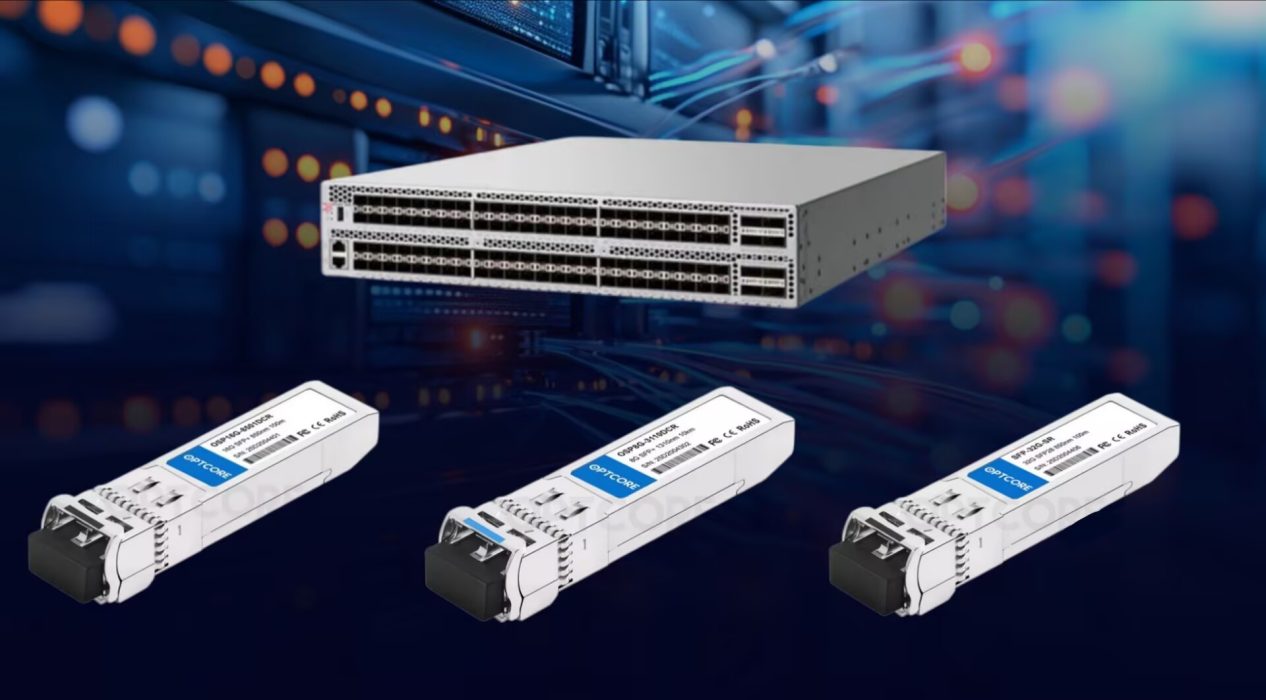

OPTCORE Fiber Channel SFP+ Module & Patch Cable For Brocade G620 Switch

The Broadcom Brocade G620 Fibre Channel switch is a Gen 6 switch built to meet the needs of today’s SAN infrastructure, which includes flash- and NVMe-based storage. This switch supports 32G Fibre Channel on all ports, ranging from 24 to 64 ports in a 1U form factor. This means you don’t need to worry about mixing different port speeds—every port can run 4G / 8G / 16G / 32G with auto-sensing, which makes deployment and upgrades much simpler in real projects.

From a hardware perspective, it delivers up to 2 Tb/s switching bandwidth, dual hot-swappable power supplies, and support for large-scale fabrics (thousands of nodes and multi-switch topologies). In reality, this puts the G620 in a role as a core or aggregation switch for storage networks that are already moving beyond traditional HDD-based workloads.

Once you grasp where it fits in the scheme of things, the typical use cases become quite obvious:

• Flash/NVMe-based storage networks
• Enterprise SAN core or aggregation layer
• Virtualized environments with high I/O density
• Data centers planning migration from 16G → 32G Fibre Channel

Key Features of Brocade G620

Consistent High Throughput for Flash and NVMe Workloads

One thing that really jumps out while working with the Brocade G620 is the stability of performance under load. All ports support 4G/8G/16G/32G speeds over Fibre Channel with auto-negotiation, so there is no need to worry about a variety of environments. When working with newer all-flash or NVMe storage solutions, this switch maintains low latency and consistent performance even when multiple hosts are simultaneously accessing it. This, of course, makes a huge difference in production environments, especially in database, virtualization, and other application scenarios where storage response times are critical.

Flexible Port Scaling without Replacing Hardware

The G620 also follows a “pay as you grow” model, starting with 24 ports and expanding to 64 by obtaining licenses. This concept is extremely practical from a real-world project standpoint. You can start early with fewer ports and grow as your environment grows.This saves cost and hardware replacement in the long run. This might be more important for teams managing storage environments in a changing world than raw specifications.

Built-in Monitoring That Actually Helps Troubleshooting

Instead of relying only on external tools, the Brocade G620 includes built-in metrics for latency, IOPS, and device-level performance. This is not just for visibility; it also helps with troubleshooting. When storage device performance deteriorates, it becomes easier to identify whether the problem lies with the network, the storage array, or the devices themselves. In large SAN environments, this built-in insight can save significant time compared to traditional debugging methods.

High Port Density in a Compact 1U Design

Packing up to 64 × 32G Fibre Channel ports into a 1U form factor, the Brocade G620 is designed for dense deployments. In data centers with limited rack space, this is very useful. You can scale storage connectivity without significantly increasing your physical footprint. Combined with ISL trunking (up to 256 Gb/s), it also enables higher inter-switch bandwidth, which helps when building larger fabrics.

Operational Stability and Fault Handling

Another practical benefit of the switch is its operational stability. This switch supports dual hot-swappable power supplies. This means that the switch can work continuously. Moreover, it can automatically identify faulty links and device faults. This makes it much easier in a production environment.

Compatible Fiber Channel SFP+ Module and Patch Cable for Brocade G620 Switch

In a real-world scenario, it is unlikely that a switch alone is enough to solve a problem; fibre channel devices, optics, and cable compatibility are equally important. OPTCORE offers compatible fibre channel optical solutions. These solutions are widely used in projects where users want stable performance without relying solely on original vendor optics.

Part Number	Description
4G FC SFP Transceiver
OSP4G-8503DCR	Brocade XBR-000139 Compatible 4G FC SWL SFP Transceiver
OSP4G-312DCR	Brocade XBR-000142 Compatible 4G FC LWL 4km SFP Transceiver
OSP4G-3110DCR	Brocade XBR-000144 Compatible 4G FC LWL 10km SFP Transceiver
OSP4G-5540DCR	Brocade XBR-000146 Compatible 4G FC ELWL 30km SFP Transceiver
8G FC SFP+ Transceiver
OSP8G-8503DCR	Brocade XBR-000147 Compatible 8G Fiber Channel SFP+ 850nm 300m Transceiver
OSP8G-3110DCR	Brocade XBR-000153 Compatible 8G Fiber Channel SFP+ 1310nm 10km Transceiver
OSP8G-5540DCR	Brocade Compatible 8G Fiber Channel SFP+ 1550nm 40km Transceiver
16G FC SFP+ Transceiver
OSP16G-8501DCR	Brocade XBR-000192 Compatible 16G Fiber Channel SFP+ 850nm 100m Transceiver
OSP16G-3110DCR	Brocade SFP-16GBPS-LWL Compatible 16G Fiber Channel SFP+ 1310nm 10km Transceiver
OSP16G-5540DCR	Brocade Compatible 16G Fiber Channel SFP+ 1550nm 40km Transceiver
32G FC SFP28 Transceiver
SFP-32G-LR	Brocade XBR-000238 XBR-000239 Compatible 32G Fibre Channel SFP28 1310nm 10km Transceiver
SFP-32G-SR	Brocade XBR-000212 XBR-000213 Compatible 32G Fibre Channel SFP28 850nm 100m Transceiver
Fiber Optic Patch Cables
LC-LC-OM2-DxM	Multimode 50/125μm OM2 Duplex LC/LC Fiber Cable (1m-50m or Custom Length)
LC-LC-OM3-DxM	Multimode 50/125μm 10G OM3 Duplex LC/LC Fiber Cable (1m-50m or Custom Length)
LC-LC-OM4-DxM	Multimode 50/125μm 10G/40G OM4 Duplex LC/LC Fiber Cable (1m-50m or Custom Length)
LC-LC-OS2-DxM	Singlemode 9/125μm OS2 Duplex LC/LC Fiber Cable (1m-50m or Custom Length)
LC-LC-OS2-SxM	Singlemode 9/125μm OS2 Simplex LC/LC Fiber Cable (1m-50m or Custom Length)

Conclusion

From an engineering standpoint, the Brocade G620 isn’t trying to be flashy; rather, it’s about a stable storage networking solution with high throughput. If you are running a flash- or NVMe-based SAN over Fibre Channel, the move to 32G Fibre Channel is definitely noticeable, with significant improvements in latency and throughput. There are a few things to consider here. One concern for some is the licensing fee for port expansion. Fibre Channel might be a little more specialized than an Ethernet-based solution for storage, such as RoCE. There might be concerns about the long-term viability of Ethernet as a solution, given its ongoing improvements.

Despite all of this, Fibre Channel is still a great solution for a storage network when predictability, latency, and stability are more important than flexibility. The Brocade G620 is a perfect fit in this solution space.
