dB vs dBm: Understanding the Difference in Fiber Optic Measurement

In fiber optic testing, we all know that optical power is usually measured in dBm, while fiber loss is usually measured in decibels (dB). So why do these two common units in fiber optic communication serve completely different purposes and are usually not mixed together? Simply put, dBm represents how much actual optical power currently exists, while dB represents how much the optical power has changed. This blog will explain the difference between dB vs dBm in detail and help you better understand fiber optic measurement.

What is dB

dB (decibel) is essentially a “relative value” unit. It does not directly represent an actual power level, but instead represents the ratio change between two power levels.

dB = 10log(P_measured / P_reference)

In this case, the measured power refers to the measured power and the reference power to the reference power. Since the value of dB is a ratio, it does not have any particular meaning on its own. For instance, a value of 3 dB cannot be taken to mean a certain amount of optical power. All it shows is that there has been an increase or decrease in the power. The greatest strength of using dB in fiber-optic communication is that it simplifies the calculation of link losses.

For instance, if the starting point for the fiber-optic link is -10 dBm and the receiving point is -13 dBm, it will mean that the link has a loss of 3 dB. Additionally, logarithms help us to sum up various losses together. If we have 0.5 dB loss for a connector, 2 dB loss for fiber, and 0.1 dB loss for a splice, the total loss is 2.6 dB, avoiding complex multiplication.

Another very important feature of dB is its fixed relationship to power multiplication. When power doubles, it increases by about 3 dB. When power is reduced by half, it decreases by about 3 dB. For example:

• 2× power ≈ +3 dB
• 10× power = +10 dB
• 100× power = +20 dB
• 0.5× power ≈ -3 dB

So, if the transmitter power is 0 dBm and becomes -3 dBm after the link, it means the optical power has dropped by 50%. In other words, a 3 dB loss means the received optical power is half the original value.

What is dBm

dBm (decibel milliwatt) is an “absolute power unit.” dB vs dBm: dBm represents the current optical power and always uses 1 mW as the reference standard. dBm calculation equation is shown below:

dBm = 10log(P_measured / 1mW)

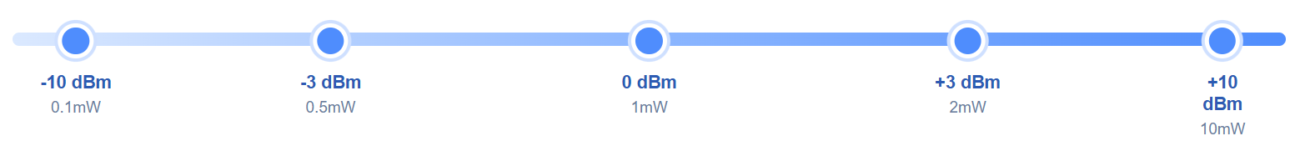

Since the reference power remains constant at 1mW, the dBm scale represents the current value of power directly. If the power measured is exactly 1mW, 0 dBm represents 1mW optical power. If the power exceeds 1 mW, the dBm value becomes positive. It implies that 2 mW of power corresponds to approximately +3 dBm. When power is less than 1 mW, the resulting dBm will be negative. So when dBm is negative, it simply means the current optical power is lower than 1mW. This concept is very common in optical transceivers.

For example, many 10G SR modules may only have a transmit power from -7 dBm to -1 dBm, while some DWDM systems with EDFA optical amplifiers may even reach above +15 dBm. For example, if an optical module datasheet says: TX Power: 0 ~ +4 dBm, Receiver Sensitivity: -12 dBm. It means the transmitter output power is around 1 mW to 2.5 mW, while the receiver can still work normally when receiving only about 0.06 mW of optical power.

In real engineering applications, dBm is commonly used to describe:

• Transmitter Output Power
• Receiver Input Power
• Receiver Sensitivity
• Optical Amplifier Output
• Optical Power Meter Reading

dB vs dBm in Fiber Optic Measurement

	dB	dBm
Type	Relative Value	Absolute Power Unit
Main Purpose	Measures Loss or Gain	Measures Actual Optical Power
Meaning	Compares Two Power Levels	Referenced to 1mW
Simple Explanation	dB = Signal Change	dBm = Current Optical Power

Why Understanding dB and dBm Is Important

In fiber optics, dB vs dBm appear in everything from test equipment to datasheets for optical modules to link-budget calculations. Newbies are often misled into thinking that 10 dB refers to a specific value of optical power, whereas in fact dB is a relative unit that requires comparing two powers to be used effectively. dBm, in contrast, is the actual measurement of power. In practical network troubleshooting, engineers usually calculate TX Power in dBm first, followed by RX Power in dBm, and lastly, the difference between the two to get the link loss in dB. Without understanding the differences between dB vs dBm, it is virtually impossible to identify what is the cause of a fault—excess link loss, dirty connections, poor splices, or weak transmitter power.

Examples of Real Fiber Optic Measurements

In any practical application of fiber-optic link measurement, engineers typically use optical power meters, light sources, OLTS devices, or OTDR instruments. It is highly advantageous for the engineer to know about dB vs dBm readings at each stage.

#1 Measuring Transmitter Power

When measuring output power, engineers usually connect a test jumper to the TX port of the light source or optical transceiver, then use an Optical Power Meter to measure the output. At this moment, the meter normally displays dBm because it is measuring the current actual optical power. For example, if the tester displays -3 dBm, it means the transmitter output power is about 0.5mW.

#2 Measuring Link Loss

The recording of the reference power is equally essential. Once the entire fiber link has been integrated into the system, there is an expected drop in light power as it passes through the fiber, connectors, and splices. If, for instance, the reference power level were –2 dBm and the received power were –5 dBm, the loss of power would be 3 dB.

#3 Testing Connectors and Splices

In some practical cases, a dirty connector might cause more than 1 dB of excess loss. When performing dBm measurements on both sides of an interface, it becomes possible to detect any faulty connector or splice.

#4 Fiber Optic Test on Long Distances

In cases where engineers use long-distance single-mode fibers, attenuation measurement is commonly combined with OTDR testing. Single-mode fiber operating at 1310 nm would normally have an attenuation of 0.4 dB per km, while that at 1550 nm would have an attenuation value of about 0.25 dB per km. If a 10-kilometer-long fiber-optic cable is supposed to lose about 2.5 dB but actually loses up to 6 dB, it suggests splice or microbend losses.

#5 DWDM and Amplified Systems

In DWDM systems, because EDFA optical amplifiers are used, the optical power inside the link may reach +10 dBm to +20 dBm. If the received optical power becomes too high, it may even overload the receiver detector. So higher dBm values are not always better. The optical power must remain within the acceptable operating range of the receiver.

FAQ

#1 Why can dBm values be negative?

Negative dBm values indicate that the optical power is less than 1 mW. Negative values of optical power do not exist.

#2 What does 0 dBm mean?

0 dBm means that optical power is equal to exactly 1 milliwatt.

#3 Is a greater dBm value always good?

No, high optical power can cause optical receiver saturation.

#4 Can dB be converted directly into mW?

No. dB only represents a ratio between two values, so it cannot be directly converted into an actual power level.

#5 Is dB always used for optical loss?

Most of the time, yes. Fiber attenuation, connector loss, splice loss, and insertion loss are usually expressed in dB.

#6 Can dBm be converted into mW?

Yes. dBm is different from dB. Since dBm is referenced to 1 mW, it can be converted to actual optical power.

Conclusion

Understanding the difference between dB vs dBm is very important in fiber optic testing. dB measures relative signal change, while dBm provides the absolute optical power level. Both are critical for fiber network testing and maintenance.
