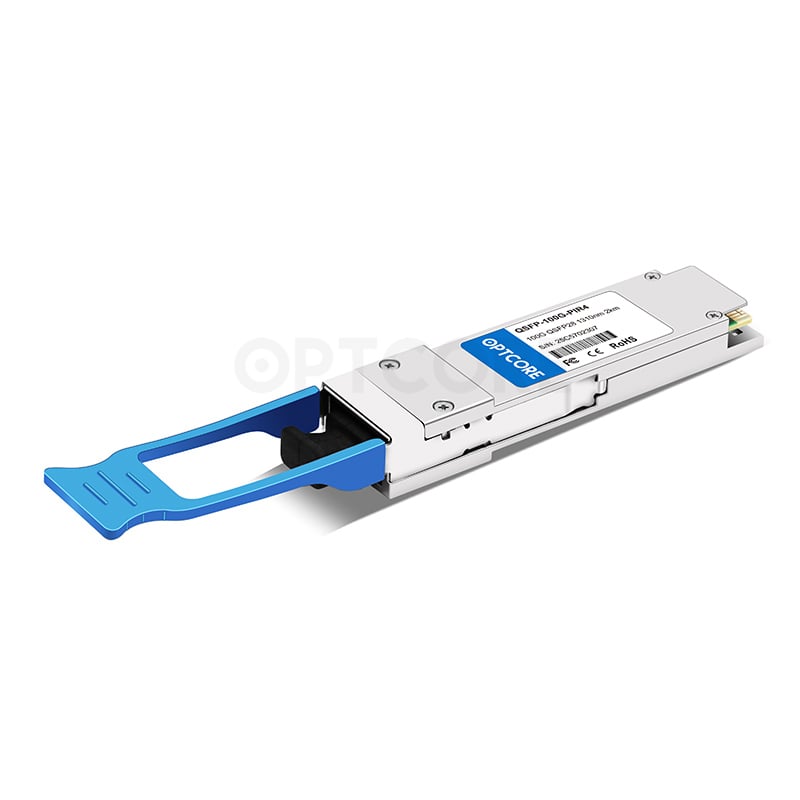

Generic Compatible 100G QSFP28 PSM4 2km Optical Transceiver Module for Data Center Connectivity
Optcore’s QSFP28-100G-PSM4 is a 100 Gbps Quad Small Form-factor Pluggable QSFP28 PSM4 (Parallel Single Mode fiber 4-lane) optical transceiver. The QSFP28 full-duplex optical transceiver offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 2km of single mode fiber. The QSFP28 PSM4 optic transceiver uses a 12 fiber MTP (MPO) connector on the optical interface and uses an MSA-compliant 38-pin edge type connector on electrical interface. An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 transceiver receptacle.
The QSFP28-100G-PSM4 is designed with the QSFP28 form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity, and EMI interference. The QSFP28 module can be managed through the I2C two-wire serial interface.
The 100G QSFP28 PSM4 optic transceiver provides a low-cost solution to long reach data center optical interconnects for data communications applications, targeted for use in parallel single mode infrastructure to meet the need of next-generation data centers.
• 4 independent full-duplex channels
• Up to 26Gb/s data rate per channel
• QSFP28 MSA compliant
• Compliant with IEEE 802.3bm 100GBASE PSM4
• Up to 2km transmission for G.652 single mode fiber
• Single 3.3V power supply
• Maximum power consumption 3.5W
• Single MPO connector receptacle
• Built-in digital diagnostic function
• Operating case: 0°C to +70°C
• ROHS 6 compliant and lead-free
|Product Series||Fiber Optical Transceiver||Optcore Part Number||QSFP28-100G-PSM4|
|Form Factor||QSFP28||Data Rate||100 Gb/s|
|Wavelength||1310 nm||Fiber Type||SMF|
|Max Distance||2 km||Optical Components||DFB/PIN|
|Transmitter Power||1 ~ 3.5 dBm||Extinction ratio||> 3.5 dB|
|Receiver Sensitivity||< -9 dBm||Receiver Overload||> 3.5 dBm|
|Connector||MPO(MTP)||Digital Diagnostic Monitoring||Yes|
|Environment||Operating: 0°C to 70°C|
Storage: -40°C to 85°C
|Application||100G Ethernet transmission|
Infiniband FDR, EDR
Proprietary High-Speed Interconnections
High-performance computing clusters
|Compliance||Compliant to IEEE 802.3bm|
Compliant to SFF-8436
QFP28-100G-PSM4 100G QSFP28 PSM4 2km Optical Transceiver Data Sheet
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
